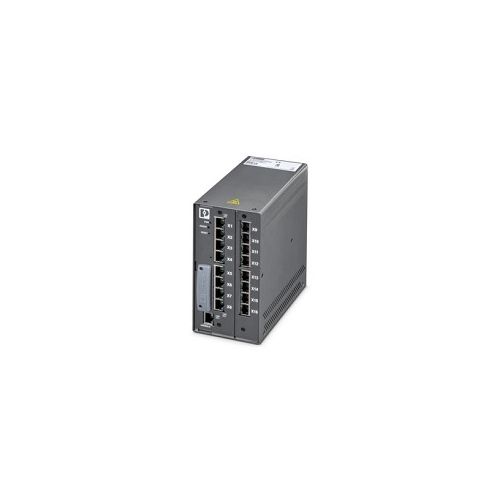

FL SWITCH EP6416-HV | 1471544 | Ethernet Switch
Managed switch with sixteen RJ45 ports at 10/100/1000 Mbps and operating temperature of -40 … +85°C, 100-240 V AC/DC (Nom.) power supply
| Complete Electronics Part No. | 1471544 |
|---|---|
| Manufacturers Part No. | 1471544 |
| Phoenix Ethernet Series: | Managed Switch EP64 |
| Managed / Unmanaged: | Managed |
| Total 10/100/1000 (RJ45) Ports: | 16 |
| Total Ethernet Ports: | 16 |
| IP Rating: | IP20 |
Description
FL SWITCH EP6416-HV
Managed Ethernet switch
Ethernet (RJ45)
Transmission speed: 10/100/1000 Mbps
RJ45 jack x 16
Transmission length: 100 m (per segment)
Auto negotiation and autocrossing
Layer 2 and Layer 3 functions
IEEE 1588 v2 precision timing support
Support for Access Control Lists (ACL)
Ethernet (Optical)
N/A
Functions
Managed Switch
Layer 2 and Layer 3 functions
IEEE 1588 v2 precision timing support
Support for Access Control Lists (ACL)
Alarm relay output: 24 V DC, 1 A maximum
Supply voltage range: 100 V AC / DC ... 240 V AC / DC
Power supply connection: Screw
Typical current consumption:
Degree of protection: IP20
Operating Temperature: -40°C ... 85°C (Type tested to 85 °C for 16 hours)
Approvals: CE-compliant
Dimensions
Width: 82.7mm
Height: 188.39mm
Depth: 197.12mm
Housing Material:
Mounting Type:
Commercial data
Weight per Piece (excluding packing): 2,006 g
Part Number: 1471544
GTIN: 4063151877323
Customs tariff number: 85176200
Minimum Order Quantity: 1 pc.
Country of Origin: CA
