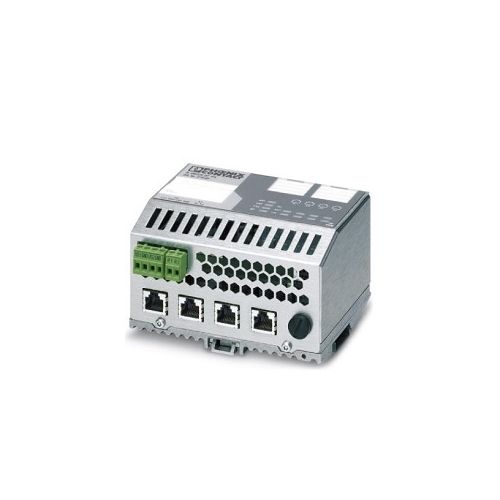

FL SWITCH IRT 4TX | 2700689 | Ethernet Switch

DIN Rail Mount Ethernet switch, 4 x 10/100 Mbps RJ45 ports for PROFINET RT/IRT, LLDP support, DCP protocol

More Information
Complete Electronics Part No.	2700689
Manufacturers Part No.	2700689
Phoenix Ethernet Series:	Managed Switch IRT
Managed / Unmanaged:	Managed
Total 10/100 (RJ45) Ports:	4
Total Ethernet Ports:	4
IP Rating:	IP20

Description

DIN Rail mount Industrial Ethernet switch

4 x 10/100 Mbps RJ45 ports

For PROFINET RT/IRT

PROFINET Conformance-Class C

Transmission Length: 100m (per segment)

SNMP

MRP (client and manager)

PN IO device

Cut-through switching

Signal LED's: Supply voltage, data transmission, error, link, activity

Power Supply Connection: Via COMBICON, max. conductor cross section 2.5 mm²

Connection Method: Screw connection

Supply Voltage: 24 V DC (Redundant)

Supply Voltage Range: 18.5 V DC....30.2 V DC

Typical Current Consumption: 235 mA

Signal contact control voltage: 24 V DC (Typical)

Degree of protection: IP20

Operating Temperature: -25°C ... 60°C

Housing: Die-cast aluminum, corrosion-resistant, transparently anodized

Width: 127mm

Height: 95mm

Depth: 69mm

Mounting Type: DIN Rail

Weight per Piece (excluding packing): 450 g

Part Number 2700689

GTIN: 4046356651479

Customs tariff number: 85176200

Country of origin: DE
