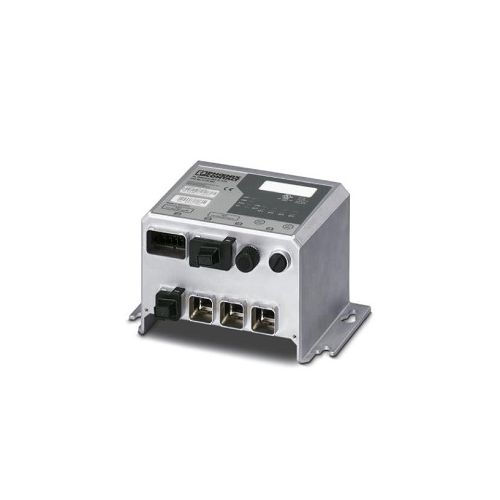

FL SWITCH IRT IP 4TX | 2700694 | Ethernet Switch
Wall Mount Ethernet switch, 4 x push-pull 10/100 Mbps RJ45 ports, for PROFINET RT/IRT, Ingress protection IP67
| Complete Electronics Part No. | 2700694 |
|---|---|
| Manufacturers Part No. | 2700694 |
| Phoenix Ethernet Series: | Managed Switch IRT |
| Managed / Unmanaged: | Managed |
| Total 10/100 (RJ45) Ports: | 4 |
| Total Ethernet Ports: | 4 |
| IP Rating: | IP67 |
Description
Wall mount Industrial Ethernet switch
4 x RJ45 ports
4 x Push Pull 10/100 Mbps RJ45 ports
For PROFINET RT/IRT
PROFINET Conformance-Class C
Transmission Length: 100m (per segment)
Signal LED's: Supply voltage, data transmission, error, link, activity
Power Supply Connection: Via COMBICON, max. conductor cross section 2.5 mm²
Connection Method: Screw connection
Supply Voltage: 24 V DC (Redundant)
Supply Voltage Range: 18.5 V DC....30.2 V DC
Typical Current Consumption: 165 mA
Signal contact control voltage: 24 V DC (Typical)
Degree of protection: IP67
Operating Temperature: -25°C ... 60°C
Housing: Zinc die-cast, surface bronzed and nickel-plated
Width: 176mm
Height: 112mm
Depth: 99mm
Mounting Type: Wall Mount
Drill Hole Spacing: 155mm
Weight per Piece (excluding packing): 2100 g
Part Number 2700694
GTIN: 4055626740171
Customs tariff number: 85176200
Country of origin: DE
