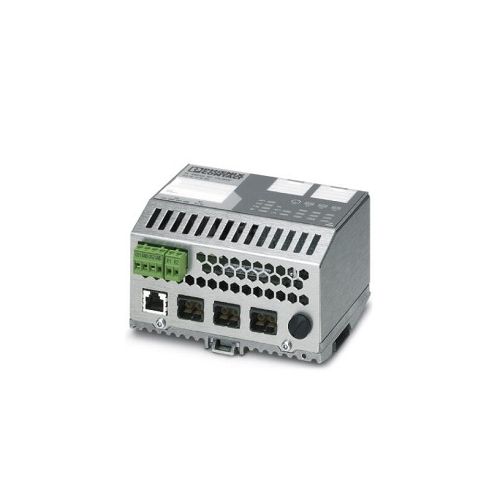

FL SWITCH IRT TX 3POF | 2700692 | Ethernet Switch
DIN Rail Mount Ethernet switch, 1 x 10/100 Mbps RJ45 ports, + 3 x 100 Mbps POF SC-RJ ports for PROFINET RT/IRT ***No longer in product range***
| Complete Electronics Part No. | 2700692 |
|---|---|
| Manufacturers Part No. | 2700692 |
| Phoenix Ethernet Series: | Managed Switch IRT |
| Managed / Unmanaged: | Managed |
| Total 10/100 (RJ45) Ports: | 1 |
| Total 100 Base Ports: | 3 |
| Total Ethernet Ports: | 4 |
| FX (Optical) Connector Type: | SC |
| IP Rating: | IP20 |
Description
DIN Rail mount Industrial Ethernet switch
1 x RJ45 port + 3 x 100 Mbps POF SC-RJ ports
***No longer in product range***
1 x 10/100 Mbps RJ45 ports
3 x 100 Mbps POF SC-RJ ports
For PROFINET RT/IRT
PROFINET Conformance-Class C
Transmission Length: 100m (per segment)
SNMP
MRP (client and manager)
PN IO device
Cut-through switching
Signal LED's: Supply voltage, data transmission, error, link, activity
Power Supply Connection: Via COMBICON, max. conductor cross section 2.5 mm²
Connection Method: Screw connection
Supply Voltage: 24 V DC (Redundant)
Supply Voltage Range: 18.5 V DC....30.2 V DC
Typical Current Consumption: 270 mA
Signal contact control voltage: 24 V DC (Typical)
Degree of protection: IP20
Operating Temperature: -25°C ... 60°C
Housing: Die-cast aluminum, corrosion-resistant, transparently anodized
Width: 127mm
Height: 95mm
Depth: 69mm
Mounting Type: DIN Rail
Weight per Piece (excluding packing): 513.4 g
Part Number 2700692
GTIN: 4046356658461
Customs tariff number: 85176200
Country of origin: DE
