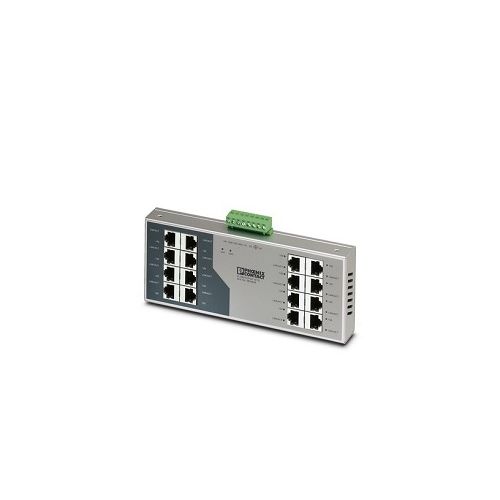

FL SWITCH SF 16TX | 2832849 | Ethernet Switch
Unmanaged switch, 16 x Twisted Pair (TP) RJ45, 10 /100 Mbps, Autocrossing Function Housing:- Aluminium ***No Longer in Product Range***
| Complete Electronics Part No. | 2832849 |
|---|---|
| Manufacturers Part No. | 2832849 |
| Phoenix Ethernet Series: | Unmanaged Switch SF |
| Managed / Unmanaged: | Unmanaged |
| Total 10/100 (RJ45) Ports: | 16 |
| Total Ethernet Ports: | 16 |
| IP Rating: | IP20 |
Description
Unmanaged Industrial Ethernet Switch
16 x Twisted Pair RJ45 Ports
***No Longer in Product Range***
- Transmission speed: 10/100 Mbps
- Transmission length:100 m (per segment)
- Auto Negotiation and Autocrossing
- Signal LED's: Data receive, link status
- Local Diagnostics:LNK/ACT Link status/data transmission Green LED
- Local Diagnostics: 100 Data transmission speed Yellow LED
- Supply voltage: 24V DC (Redundant)
- Supply voltage range: 18 V DC ... 32 V DC
- Power Supply Connection: Via COMBICON, max. conductor cross section 2.5 mm²
- Connection Method: Screw Connection
- Typical current consumption: 146 mA (at US = 24 V DC)
- Degree of protection: IP20
- Operating Temperature: -10 °C ... 60 °C
- Width: 205mm
- Height: 94.3mm
- Depth: 30mm
- Housing Material: Aluminium
- Mounting Type: DIN Rail
- Weight per Piece (excluding packing): 374 g
- Part Number 2832849
- GTIN: 4017918952211
- Customs tariff number: 85176200
- Country of origin: TW
