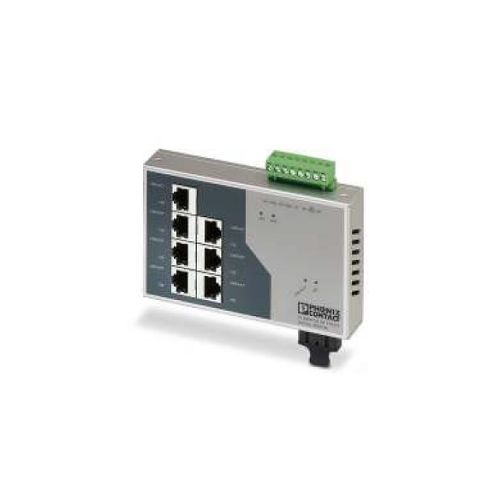

FL SWITCH SF 7TX/FX | 2832726 | Ethernet Switch
Ethernet Switch, 7 TP RJ45 ports, 1 FO port, 100 Mbps full duplex in SC-D format, automatic detection of data transmission speed of 10 or 100 Mbps (RJ45)
| Complete Electronics Part No. | 2832726 |
|---|---|
| Manufacturers Part No. | 2832726 |
| Phoenix Ethernet Series: | Unmanaged Switch SF |
| Managed / Unmanaged: | Unmanaged |
| Total 10/100 (RJ45) Ports: | 7 |
| Total 100 Base Ports: | 1 |
| Total Ethernet Ports: | 8 |
| IP Rating: | IP20 |
Description
Unmanaged Industrial Ethernet Switch
7 x Twisted Pair RJ45 Ports + 1 x FO Port
- 7 x 10/100 Mbps (RJ45)
- 1 x FO Port 100Mbps full duplex in SC-D format
- FO Port: Multi Mode fibreglass
- Auto Negotiation and Autocrossing
- Signal LED's: Data receive, link status
- Local Diagnostics:LNK/ACT Link status/data transmission Green LED
- Local Diagnostics: 100 Data transmission speed Yellow LED
- Supply voltage: 24V DC (Redundant)
- Supply voltage range: 18.5 V DC ... 32.2 V DC
- Power Supply Connection: Via COMBICON, max. conductor cross section 2.5 mm²
- Connection Method: Screw Connection
- Typical current consumption: 135 mA (at US = 24 V DC)
- Degree of protection: IP20
- Operating Temperature: 0 °C ... 55°C
- Width: 135mm
- Height: 115.3mm
- Depth: 30mm
- Housing Material: Aluminium
- Mounting Type: DIN Rail
- Weight per Piece (excluding packing): 437 g
- Part Number 2832726
- GTIN: 4017918952228
- Customs tariff number: 85176200
- Country of origin: TW
