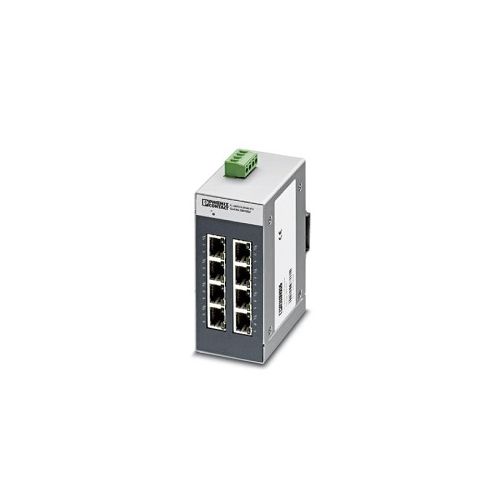

FL SWITCH SF 8TX | 2832771 | Ethernet Switch
Unmanaged switch, 8 x Twisted Pair (TP) RJ45, 10 /100 Mbps, autocrossing function, Housing:- Aluminium ***No longer in product range***
| Complete Electronics Part No. | 2832771 |
|---|---|
| Manufacturers Part No. | 2832771 |
| Phoenix Ethernet Series: | Unmanaged Switch SF |
| Managed / Unmanaged: | Unmanaged |
| Total 10/100 (RJ45) Ports: | 8 |
| Total Ethernet Ports: | 8 |
| IP Rating: | IP20 |
Description
Unmanaged Industrial Ethernet Switch
8 x Twisted Pair RJ45 Ports
***No longer in product range***
- DIN Rail Mount
- Transmission speed: 10/100 Mbps
- Transmission length:100 m (per segment)
- Auto Negotiation and Autocrossing
- LNK/ACT Link status/data transmission Green LED
- 100 Data transmission speed Yellow LED
- Supply voltage: 24V DC (Redundant)
- Supply voltage range: 18.5 V DC ... 30.2 V DC
- Signal contact control voltage24 V DC (typical)
- Power supply connection Via COMBICON, max. conductor cross section 2.5 mm²
- Connection Method: Screw Connection
- Typical current consumption: 200 mA (at US = 24 V DC)
- Degree of protection: IP20
- Operating Temperature: -20 °C ... 70 °C
- Width: 135mm
- Height: 94.3mm
- Depth: 30mm
- Housing Material: Aluminium
- Mounting Type: DIN Rail
- Weight per Piece (excluding packing): 415 g
- Part Number 2832771
- GTIN: 4017918952204
- Customs tariff number: 85176200
- Country of origin: TW
