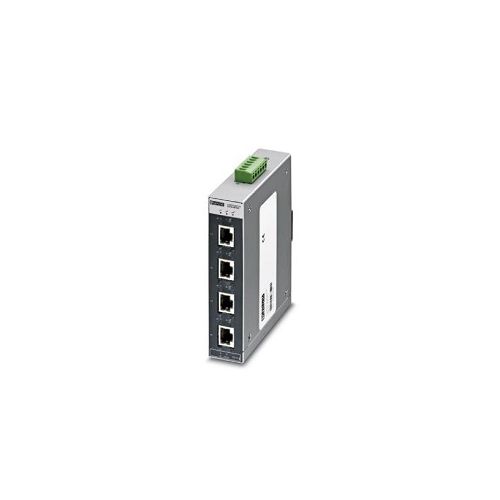

FL SWITCH SFN 4TX/FX | 2891851 | Ethernet Switch
4 TP RJ45 ports, 1 FO port, 100 Mbps full duplex in SC-D format, automatic detection of data transmission speed of 10 or 100 Mbps (RJ45)
| Complete Electronics Part No. | 2891851 |
|---|---|
| Manufacturers Part No. | 2891851 |
| Phoenix Ethernet Series: | Unmanaged Switch SFN |
| Managed / Unmanaged: | Unmanaged |
| Total 10/100 (RJ45) Ports: | 4 |
| Total 100 Base Ports: | 1 |
| Total Ethernet Ports: | 5 |
| FX (Optical) Connector Type: | SC |
| IP Rating: | IP20 |
Description
Unmanaged Industrial Ethernet Switch
5 x Twisted Pair RJ45 Ports
- 4 x RJ45 10/100 Mbps
- 1 x ST 100Mbps FO port (SC)
- Multimode Fibre
- Auto Negotiation and Autocrossing
- Signal LED's: Activity, link status
- Supply voltage: 24V DC
- Supply voltage range: 9 V DC ... 32 V DC
- Power Supply Connection: Screw Connection
- Typical current consumption: 140 mA (at US = 24 V DC)
- Degree of protection: IP20
- Operating Temperature: 0°C ... 60°C
- Width: 30mm
- Height: 120mm
- Depth: 70mm
- Housing Material: Aluminium
- Mounting Type: DIN Rail
- Weight per Piece (excluding packing): 265 g
- Part Number 2891851
- GTIN: 4046356100809
- Customs tariff number: 85176200
- Country of origin: TW
