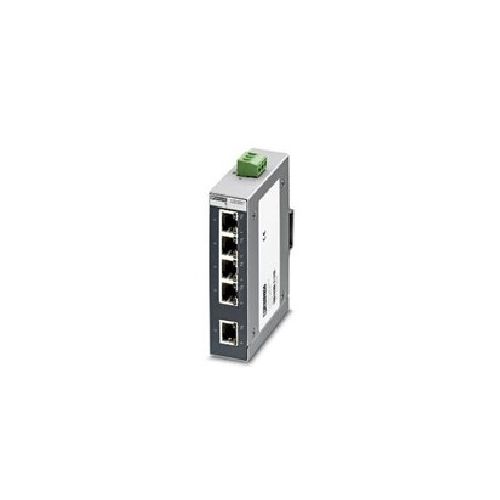

FL SWITCH SFN 5GT | 2891444 | Ethernet Switch
Unmanaged switch, 5 x Twisted Pair (TP) RJ45, 10/100/1000 Mbps, autocrossing function, Housing:- Aluminium, DIN Rail Mounting, automatic detection of port speed
| Complete Electronics Part No. | 2891444 |
|---|---|
| Manufacturers Part No. | 2891444 |
| Phoenix Ethernet Series: | Unmanaged Switch SFNB |
| Managed / Unmanaged: | Unmanaged |
| Total 10/100/1000 (RJ45) Ports: | 5 |
| Total Ethernet Ports: | 5 |
| IP Rating: | IP20 |
Description
Unmanaged Industrial Ethernet Switch
5 x Twisted Pair RJ45 Ports
- DIN Rail Mount
- Transmission speed: 10/100/1000 Mbps
- Transmission length:100 m (per segment)
- Auto Negotiation and Autocrossing
- Jumbo frame support (frame size up to 10,240 bytes/frame)
- Complies with IEEE 802.3, store and forward switching mode
- Signal LEDs: Data receive, link status
- Supply voltage: 24V DC
- Supply voltage range: 10 V DC ... 60 V DC
- Power supply connection: Screw connection
- Typical current consumption: 200 mA (at US = 24 V DC)
- Degree of protection: IP20
- Operating Temperature: -10 °C ... 60 °C
- Width: 28mm
- Height: 110mm
- Depth: 70mm
- Housing Material: Aluminium
- Mounting Type: DIN Rail
- Weight per Piece (excluding packing): 205 g
- Part Number 2891444
- GTIN: 4055626000886
- Customs tariff number: 85176200
- Country of origin: TW
