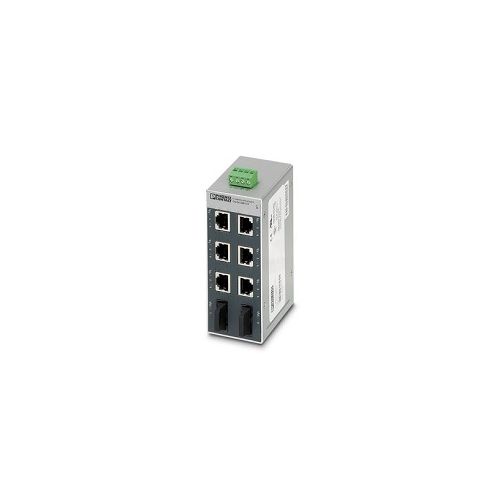

FL SWITCH SFN-6TX/2FX | 2891314 | Ethernet Switch
Unmanaged switch, 6 x RJ45, 10/100 Mbps, 2 x FO SC ports 10/100Mbps, Housing:- Aluminium, DIN Rail Mounting ***No longer in product range***
| Complete Electronics Part No. | 2891314 |
|---|---|
| Manufacturers Part No. | 2891314 |
| Phoenix Ethernet Series: | Unmanaged Switch SFN |
| Managed / Unmanaged: | Unmanaged |
| Total 10/100 (RJ45) Ports: | 6 |
| Total 100 Base Ports: | 2 |
| Total 100/1000 (FX) Ports: | 2 |
| Total Ethernet Ports: | 8 |
| FX (Optical) Connector Type: | SC |
| IP Rating: | IP30 |
Description
Unmanaged Industrial Ethernet Switch
6 x Twisted Pair RJ45
***No longer in product range***
- 6 x10/100 Mbps Ports
- 2 x FO SC port 10/100Mbps
- Transmission length (RJ45):100 m (per segment)
- Auto Negotiation and Autocrossing
- Signal LEDs: Data receive, Link status
- Supply voltage: 24V DC
- Supply voltage range: 9 V DC ... 32 V DC
- Power supply connection Via COMBICON, max. conductor cross section 2.5 mm²
- Connection Method: Pluggable COMBICON screw connections
- Typical current consumption:230 mA
- Degree of protection: IP20
- Operating Temperature: 0 °C ... 60 °C
- Width: 50mm
- Height: 120mm
- Depth: 70mm
- Housing Material: Aluminium
- Mounting Type: DIN Rail
- Weight per Piece (excluding packing): 365 g
- Part Number 2891314
- GTIN: 4046356100854
- Customs tariff number: 85176200
- Country of origin: TW
