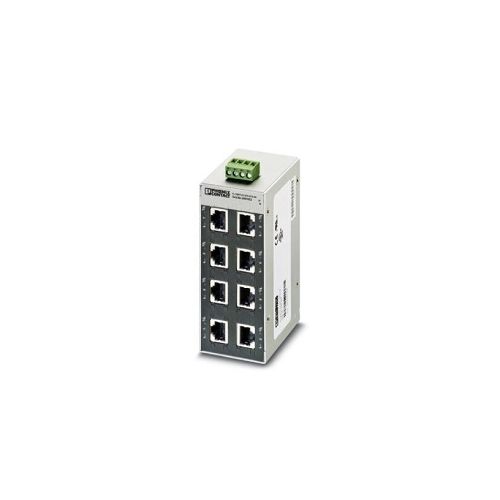

FL SWITCH SFN 8GT | 2891673 | Ethernet Switch
Unmanaged switch, 8 x Twisted Pair (TP) RJ45, 10 /100/1000 Mbps, autocrossing function, Housing:- Aluminium, DIN Rail Mounting, with signaling contact and QoS
| Complete Electronics Part No. | 2891673 |
|---|---|
| Manufacturers Part No. | 2891673 |
| Phoenix Ethernet Series: | Unmanaged Switch SFN |
| Managed / Unmanaged: | Unmanaged |
| Total 10/100/1000 (RJ45) Ports: | 8 |
| Total Ethernet Ports: | 8 |
| IP Rating: | IP20 |
Description
Unmanaged Industrial Ethernet Switch
8 x Twisted Pair RJ45 Ports
- DIN Rail Mount
- Transmission speed: 10/100/1000 Mbps
- Transmission length:100 m (per segment)
- Auto Negotiation and Autocrossing
- LNK/ACT Link status/data transmission Green LED
- 100 ACT Data transmission speed Yellow LED
- 1000 ACT Data transmission speed Yellow LED
- Supply voltage: 24V DC
- Supply voltage range: 9 V DC ... 32 V DC
- Connection Method: Screw Connection
- Typical current consumption: 430 mA (at US = 24 V DC)
- Degree of protection: IP20
- Operating Temperature: -40°C ... 75°C
- Width: 50mm
- Height: 120mm
- Depth: 70mm
- Housing Material: Aluminium
- Mounting Type: DIN Rail
- Weight per Piece (excluding packing): 395 g
- Part Number 2891673
- GTIN: 4046356101172
- Customs tariff number: 85176200
- Country of origin: TW
