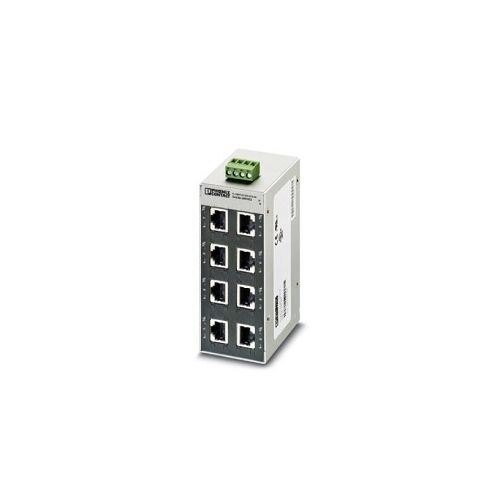

FL SWITCH SFN 8TX | 2891018 | Ethernet Switch
Ethernet switch, eight TP RJ45 ports, automatic detection of data transmission speed of 10 or 100 Mbps (RJ45), will block PROFINET PTCP-Delay traffic
| Complete Electronics Part No. | 2891018 |
|---|---|
| Manufacturers Part No. | 2891018 |
| Phoenix Ethernet Series: | Unmanaged Switch SFN |
| Managed / Unmanaged: | Unmanaged |
| Total 10/100 (RJ45) Ports: | 8 |
| Total Ethernet Ports: | 8 |
| IP Rating: | IP20 |
Description
Unmanaged Industrial Ethernet Switch
8 x Twisted Pair RJ45 Ports
- DIN Rail Mount
- Transmission speed: 10/100 Mbps
- Transmission length:100 m (per segment)
- Auto Negotiation and Autocrossing
- The multicast filter will block PROFINET PTCP-Delay traffic.
- LNK/ACT Link status/data transmission Green LED
- 100 Data transmission speed Yellow LED
- Supply voltage: 24V DC
- Supply voltage range: 9 V DC ... 32 V DC
- Connection Method: Screw Connection
- Typical current consumption: 140 mA (at US = 24 V DC)
- Degree of protection: IP20
- Operating Temperature: 0 °C ... 60 °C
- Width: 50mm
- Height: 130mm
- Depth: 100mm
- Housing Material: Aluminium
- Mounting Type: DIN Rail
- Weight per Piece (excluding packing): 365 g
- Part Number 2891018
- GTIN: 4046356997300
- Customs tariff number: 85176200
- Country of origin: TW
