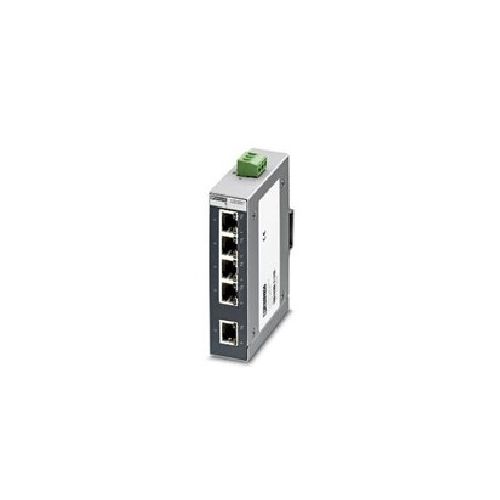

FL SWITCH SFNB 5TX-PNE| 1071801 | Ethernet Switch
Unmanaged switch, 5 x Twisted Pair (TP) RJ45, 10 or 100 Mbps, autocrossing function, Housing:- Aluminium ***No longer in product range***
| Complete Electronics Part No. | 1071801 |
|---|---|
| Manufacturers Part No. | 1071801 |
| Phoenix Ethernet Series: | Unmanaged Switch SFNB |
| Managed / Unmanaged: | Unmanaged |
| Total 10/100 (RJ45) Ports: | 5 |
| Total Ethernet Ports: | 5 |
| IP Rating: | IP20 |
Description
Unmanaged Industrial Ethernet Switch
5 x Twisted Pair RJ45 Ports
***No longer in product range***
- DIN Rail Mount
- Transmission speed: 10/100 Mbps
- Multicast filter will block PROFINET PTCP-Delay traffic
- Transmission length:100 m (per segment)
- Auto Negotiation and Autocrossing
- Complies with IEEE 802.3, store and forward switching mode
- Signal LEDs: Data receive, link status
- Supply voltage: 24V DC
- Supply voltage range: 12 V DC ... 48 V DC
- Power supply connection Via COMBICON, max. conductor cross section 2.5 mm²
- Typical current consumption: 185 mA (at US = 24 V DC)
- Degree of protection: IP20
- Operating Temperature: -10°C ... 60°C
- Width: 28mm
- Height: 110mm
- Depth: 70mm
- Housing Material: Aluminium
- Mounting Type: DIN Rail
- Weight per Piece (excluding packing): 277.3 g
- Part Number 1071801
- GTIN: 4055626752792
- Customs tariff number: 85176200
- Country of origin: TW
