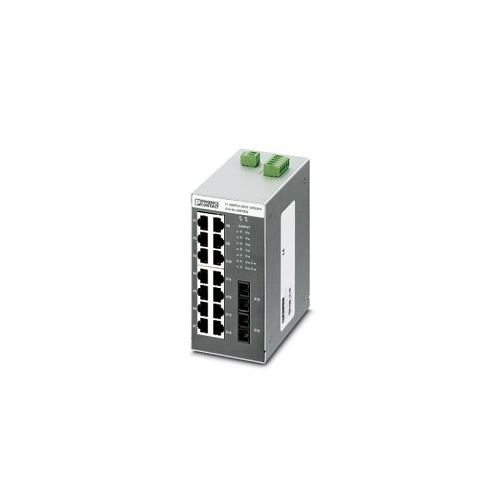

FL SWITCH SFNT 14TX/2FX | 2891954 | Ethernet Switch
Unmanaged switch, 14 x Twisted Pair (TP) RJ45, 10 /100 Mbps, 2 x FO ports, 100 Mbps, SC format, Multi Mode ***No longer in product range***
| Complete Electronics Part No. | 2891954 |
|---|---|
| Manufacturers Part No. | 2891954 |
| Phoenix Ethernet Series: | Unmanaged Switch SFNT |
| Managed / Unmanaged: | Unmanaged |
| Total 10/100 (RJ45) Ports: | 14 |
| Total 100 Base Ports: | 2 |
| Total Ethernet Ports: | 16 |
| FX (Optical) Connector Type: | SC |
| IP Rating: | IP20 |
Description
Unmanaged Industrial Ethernet Switch
14 x Twisted Pair RJ45 Ports
***No longer in product range***
14 x RJ45 10/100 Mbps
2 FO ports, 100 Mbps (Full Duplex), in SC format,
Auto Negotiation and Autocrossing
Fiber-optic ports support 100 Mbps
Local diagnostic indicators with LEDs
Supply voltage: 24V DC (Redundant)
Supply voltage range: 12V DC ... 48 V DC
Power Supply Connection: Via COMBICON, max. conductor cross section 2.5 mm²
Screw Connection
Typical current consumption: 350 mA (at US = 24 V DC)
Degree of protection: IP20
Operating Temperature: -40 °C ... 75 °C
Width: 70mm
Height: 135mm
Depth: 110mm
Housing Material: Aluminium
Mounting Type: DIN Rail
Weight per Piece (excluding packing): 870 g
Part Number 2891954
GTIN: 4046356551632
Customs tariff number: 85176200
Country of origin: TW
