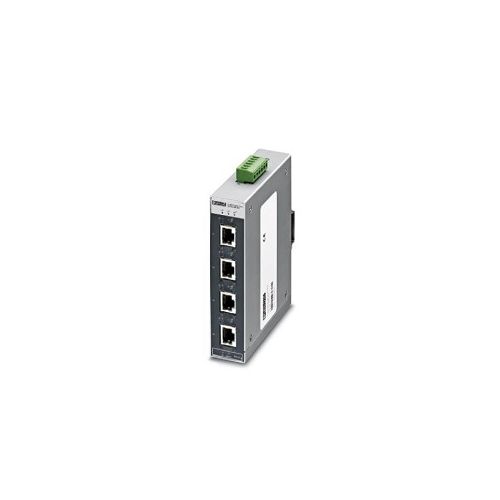

FL SWITCH SFNT 4TX/FX | 2891004 | Ethernet Switch
Unmanaged switch, 4 x Twisted Pair (TP) RJ45, 10 /100 Mbps, 1 x FO SC Port , ***No longer in product range***
| Complete Electronics Part No. | 2891004 |
|---|---|
| Manufacturers Part No. | 2891004 |
| Phoenix Ethernet Series: | Unmanaged Switch SFNT |
| Managed / Unmanaged: | Unmanaged |
| Total 10/100 (RJ45) Ports: | 4 |
| Total 100 Base Ports: | 1 |
| Total Ethernet Ports: | 5 |
| FX (Optical) Connector Type: | SC |
| IP Rating: | IP20 |
Description
Unmanaged Industrial Ethernet Switch
4 x Twisted Pair RJ45 Ports
***No longer in product range***
- 4 x RJ45 10/100 Mbps
- 1 x FO SC-D format 100 Mbps (full duplex) Multi Mode
- Wide Temperature Range
- Transmission length (RJ45):100 m (per segment)
- Auto Negotiation and Autocrossing
- Signal LED's: Data receive, link status
- Supply voltage: 24V DC (Redundant)
- Supply voltage range: 9 V DC ... 32 V DC
- Power Supply Connection: Via COMBICON, max. conductor cross section 2.5 mm²
- Typical current consumption: 180 mA (at US = 24 V DC)
- Degree of protection: IP20
- Operating Temperature: -40 °C ... 75 °C
- Width: 30mm
- Height: 130mm
- Depth: 100mm
- Housing Material: Aluminium
- Mounting Type: DIN Rail
- Weight per Piece (excluding packing): 280 g
- Part Number 2891004
- GTIN: 4046356457194
- Customs tariff number: 85176200
- Country of origin: TW
