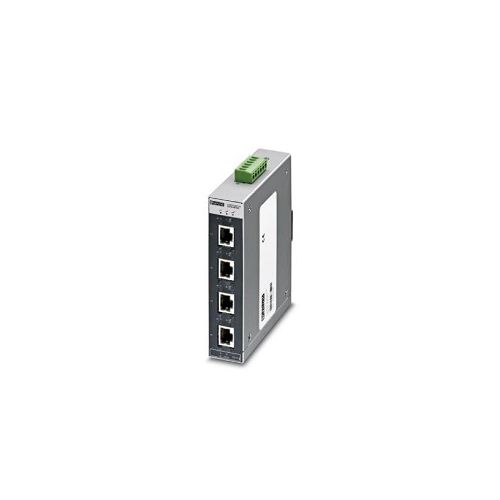

FL SWITCH SFNT 5GT | 2891390 | Ethernet Switch
Unmanaged switch, 5 x Twisted Pair (TP) RJ45, 10 /100/1000 Mbps, Wide Temperature range, Housing:- Aluminium ***No longer in product range***
| Complete Electronics Part No. | 2891390 |
|---|---|
| Manufacturers Part No. | 2891390 |
| Phoenix Ethernet Series: | Unmanaged Switch SFNT |
| Managed / Unmanaged: | Unmanaged |
| Total 10/100/1000 (RJ45) Ports: | 5 |
| Total Ethernet Ports: | 5 |
| IP Rating: | IP20 |
Description
Unmanaged Industrial Ethernet Switch
5 x Twisted Pair RJ45 Ports
***No longer in product range***
- 5 x RJ45 10/100/1000 Mbps
- Auto Negotiation and Autocrossing
- Signal LED's: Data receive, link status
- Supply voltage: 24V DC (Redundant)
- Supply voltage range: 10 V DC ... 60 V DC
- Power Supply Connection: Via COMBICON, max. conductor cross section 2.5 mm²
- Screw Connection
- Typical current consumption: 223 mA (at US = 24 V DC)
- Degree of protection: IP20
- Operating Temperature: -40 °C ... 75 °C
- Width: 30mm
- Height: 130mm
- Depth: 100mm
- Housing Material: Aluminium
- Mounting Type: DIN Rail
- Weight per Piece (excluding packing): 275 g
- Part Number 2891390
- GTIN: 4055626000893
- Customs tariff number: 85176200
- Country of origin: TW
