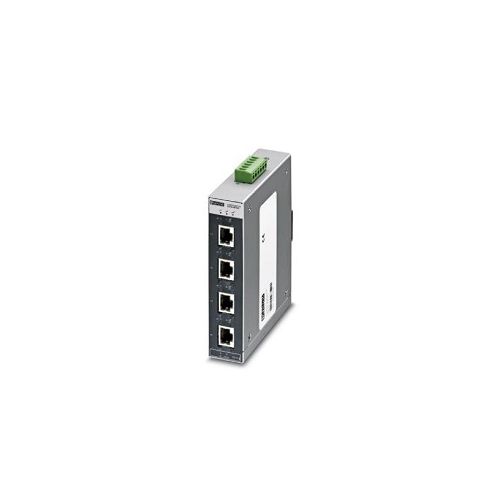

FL SWITCH SFNT 5GT-C | 2891391 | Ethernet Switch
Unmanaged switch, 5 x Twisted Pair (TP) RJ45, 10 /100/1000 Mbps, Multicast filtering, Alarm contact, Quality of service ***No longer in product range***
| Complete Electronics Part No. | 2891391 |
|---|---|
| Manufacturers Part No. | 2891391 |
| Phoenix Ethernet Series: | Unmanaged Switch SFNT |
| Managed / Unmanaged: | Unmanaged |
| Total 10/100/1000 (RJ45) Ports: | 5 |
| Total Ethernet Ports: | 5 |
| IP Rating: | IP20 |
Description
Unmanaged Industrial Ethernet Switch
5 x Twisted Pair RJ45 Ports
***No longer in product range***
5 x RJ45 10/100/1000 Mbps
Auto Negotiation and Autocrossing
All ports offer transmission speeds of 1000 Mbps
Jumbo frame support (frame size up to 10,240 bytes/frame)
QoS-prioritized (Quality of Service) messages
Alarm contact for power supply and link status diagnostics
The switch also offers cable locking and port blocking
Local diagnostic indicators with LEDs
Supply voltage: 24V DC (Redundant)
Supply voltage range: 10V DC ... 60 V DC
Power Supply Connection: Via COMBICON, max. conductor cross section 2.5 mm²
Typical current consumption: 223 mA (at US = 24 V DC)
Degree of protection: IP20
Operating Temperature: -40 °C ... 75 °C
Width: 30mm
Height: 130mm
Depth: 100mm
Housing Material: Aluminium
Mounting Type: DIN Rail
Weight per Piece (excluding packing): 245 g
Part Number 2891391
GTIN: 4055626001104
Customs tariff number: 85176200
Country of origin: TW
