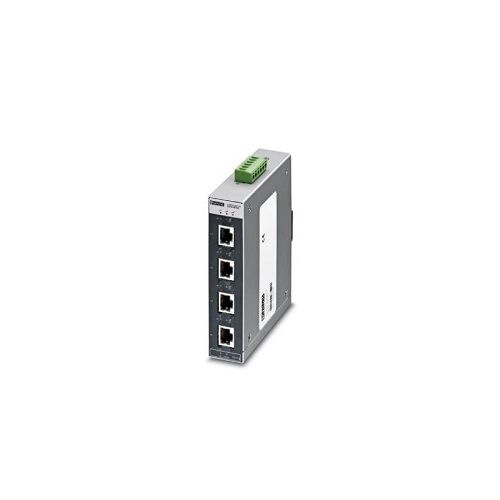

FL SWITCH SFNT 5TX-C | 2891043 | Ethernet Switch
Unmanaged Ethernet switch, 5 x RJ45 10/100/ Ports, auto crossing function, DIN Rail Mount, Conformal coating ***No longer in product range***
| Complete Electronics Part No. | 2891043 |
|---|---|
| Manufacturers Part No. | 2891043 |
| Phoenix Ethernet Series: | Unmanaged Switch SFNT |
| Managed / Unmanaged: | Unmanaged |
| Total 10/100 (RJ45) Ports: | 5 |
| Total Ethernet Ports: | 5 |
| IP Rating: | IP20 |
Description
Unmanaged Ethernet switch
5 x RJ45 ports 10/100/Mbps
***No longer in product range***
Auto negotiation and autocrossing (RJ45 Interface)
Quality of service (QoS) support
Accepts security frames
Conformal coating for harsh environments.
Signal LED's: Activity, Link Status
Transmission Length: 100 m per segment
Supply Voltage: 24 V DC (redundant)
Supply Voltage Range: 9 V DC....32 V DC
Power Supply Connection: Via COMBICON, max. conductor cross section 2.5 mm²
Typical Current Consumption: 125 mA (at US = 24 V DC)
Degree of protection: IP20
Operating Temperature: -40°C ... 75°C
Width: 30mm
Height: 130mm
Depth: 100mm
Mounting Type: DIN Rail
Housing Material: Aluminium
Weight per Piece (excluding packing): 275 g
Part Number 2891043
GTIN: 4046356651080
Customs tariff number: 85176200
Country of origin: TW
