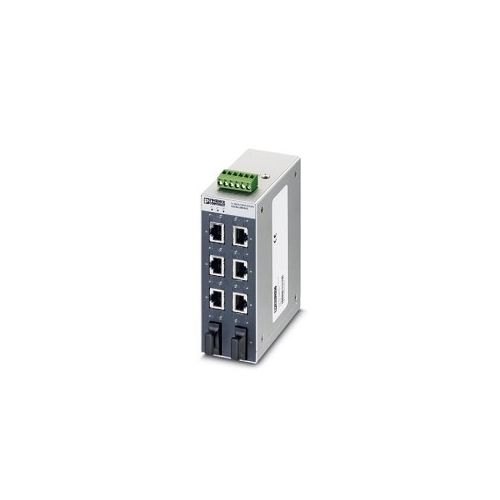

FL SWITCH SFNT 6TX/2FX | 2891025 | Ethernet Switch
DIN Rail Mount Ethernet switch, 6 x RJ45 10/100 Ports, 2 x 100 Mbps (Full Duplex) FO SC format Ports Multi Mode ***No longer in product range***
| Complete Electronics Part No. | 2891025 |
|---|---|
| Manufacturers Part No. | 2891025 |
| Phoenix Ethernet Series: | Unmanaged Switch SFNT |
| Managed / Unmanaged: | Unmanaged |
| Total 10/100 (RJ45) Ports: | 6 |
| Total 100 Base Ports: | 2 |
| Total Ethernet Ports: | 8 |
| FX (Optical) Connector Type: | SC |
| IP Rating: | IP20 |
Description
Din Rail mount Unmanaged Ethernet switch
6 x RJ45 ports + 2 SC format fiber optic ports
***No longer in product range***
6 x RJ45 ports 10/100 Mbps
2 x 100 Mbps (Full Duplex) FO SC Ports Multi Mode.
Auto negotiation and autocrossing (RJ45 Interface)
QoS-prioritized (Quality of Service) messages
Local diagnostic indicators with LEDs
Alarm contact for power supply and link status diagnostics
The switch also offers cable locking and port blocking
Supply Voltage: 24 V DC (Redundant)
Supply Voltage Range: 9 V DC....32 V DC
Typical Current Consumption: 250 mA (at US = 24 V DC)
Power Supply Connection: Via COMBICON, max. conductor cross section 2.5 mm²
Degree of protection: IP20
Operating Temperature: -40 °C ... 75 °C
Width: 50mm
Height: 130mm
Depth: 100mm
Mounting Type: DIN Rail
Housing: Aluminium
Weight per Piece (excluding packing): 484 g
Part Number 2891025
GTIN: 4046356587969
Customs tariff number: 85176200
Country of origin: TW
*** Discontinued - Available until 11 Feb 2023***
