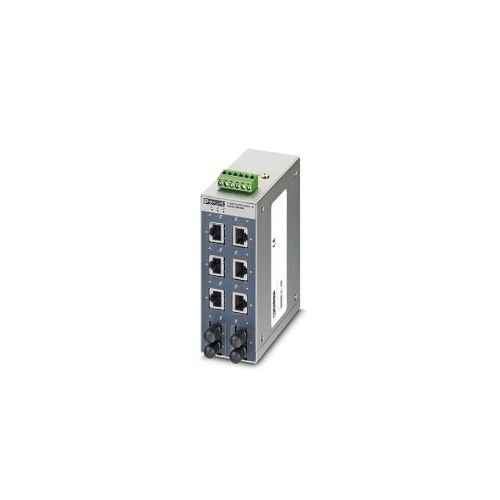

FL SWITCH SFNT 6TX/2FX ST-C | 2891049 | Ethernet Switch
Unmanaged Ethernet switch, 6 x RJ45 10/100/ Ports, 2 x FO ST Ports 100 full duplex, auto crossing function, DIN Rail Mount***No longer in product range***
| Complete Electronics Part No. | 2891049 |
|---|---|
| Manufacturers Part No. | 2891049 |
| Phoenix Ethernet Series: | Unmanaged Switch SFNT |
| Managed / Unmanaged: | Unmanaged |
| Total 10/100 (RJ45) Ports: | 6 |
| Total 100 Base Ports: | 2 |
| FX (Optical) Connector Type: | ST |
| IP Rating: | IP20 |
Description
Unmanaged Ethernet switch
6 x RJ45 ports 10/100/Mbps
***No longer in product range***
2 x 100Mbps (full Duplex) FO ST Multi Mode Ports
Auto negotiation and autocrossing (RJ45 Interface)
Quality of service (QoS) support
Accepts security frames
Conformal coating for harsh environments.
Signal LED's: Activity, Link Status
Transmission Length: 100 m per segment
Supply Voltage: 24 V DC (redundant)
Power Supply Connection: Via COMBICON, max. conductor cross section 2.5 mm²
Typical Current Consumption: 250 mA (at US = 24 V DC)
PCB Conformally coated for use in harsh conditions
Degree of protection: IP20
Operating Temperature: -40°C ... 75°C
Width: 50mm
Height: 130mm
Depth: 100mm
Mounting Type: DIN Rail
Housing Material: Aluminium
Weight per Piece (excluding packing): 484 g
Part Number 2891049
GTIN: 4046356651141
Customs tariff number: 85176200
Country of origin: TW
