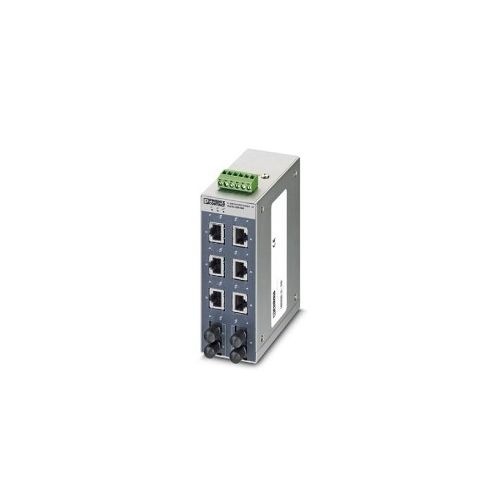

FL SWITCH SFNT 6TX/FX ST | 2891026 | Ethernet Switch
Unmanaged switch, 6 x Twisted Pair (TP) RJ45, 10 /100 Mbps, 2 FO ports, 100 Mbps full duplex, ST Connector, Multi Mode ***No longer in product range***
| Complete Electronics Part No. | 2891026 |
|---|---|
| Manufacturers Part No. | 2891026 |
| Phoenix Ethernet Series: | Unmanaged Switch SFNT |
| Managed / Unmanaged: | Unmanaged |
| Total 10/100 (RJ45) Ports: | 6 |
| Total 100 Base Ports: | 2 |
| Total Ethernet Ports: | 8 |
| FX (Optical) Connector Type: | ST |
| IP Rating: | IP20 |
Description
Unmanaged Industrial Ethernet Switch
6 x Twisted Pair RJ45 Ports
***No longer in product range***
- 6 x RJ45 10/100 Mbps
- 2 FO ports, 100 Mbps full duplex in ST-D format,
- Auto Negotiation and Autocrossing
- Wide operating temperature range of -40 °C ... 75 °C
- QoS-prioritized (Quality of Service) messages
- Fiber-optic ports support 100 Mbps
- Alarm contact for power supply and link status diagnostics
- The switch also offers cable locking and port blocking
- Local diagnostic indicators with LEDs
- Supply voltage: 24V DC (Redundant)
- Supply voltage range: 9 V DC ... 32 V DC
- Power Supply Connection: Via COMBICON, max. conductor cross section 2.5 mm²
- Typical current consumption: 250 mA (at US = 24 V DC)
- Degree of protection: IP20
- Operating Temperature: -40 °C ... 75 °C
- Width: 50mm
- Height: 130mm
- Depth: 100mm
- Housing Material: Aluminium
- Mounting Type: DIN Rail
- Weight per Piece (excluding packing): 487 g
- Part Number 2891026
- GTIN: 4046356588072
- Customs tariff number: 85176200
- Country of origin: TW
