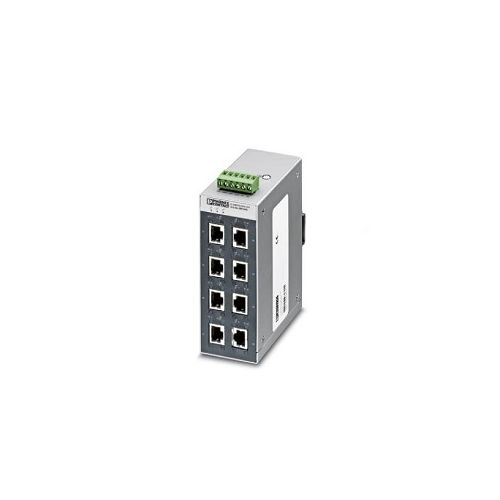

FL SWITCH SFNT 8TX | 2891005 | Ethernet Switch
Unmanaged switch, 8 x Twisted Pair (TP) RJ45, 10 /100 Mbps, Wide Temperature Range, Housing:- Aluminium ***No longer in product range***
| Complete Electronics Part No. | 2891005 |
|---|---|
| Manufacturers Part No. | 2891005 |
| Phoenix Ethernet Series: | Unmanaged Switch SFNT |
| Managed / Unmanaged: | Unmanaged |
| Total 10/100 (RJ45) Ports: | 8 |
| Total Ethernet Ports: | 8 |
| IP Rating: | IP20 |
Description
Unmanaged Industrial Ethernet Switch
8 x Twisted Pair RJ45 Ports
***No longer in product range***
- Wide Temperature Range
- Transmission speed: 10/100 Mbps
- Transmission length:100 m (per segment)
- Auto Negotiation and Autocrossing
- LNK/ACT Link status/data transmission Green LED
- 100 Data transmission speed Yellow LED
- Supply voltage: 24V DC (Redundant)
- Supply voltage range: 9 V DC ... 32 V DC
- Power Supply Connection: Via COMBICON, max. conductor cross section 2.5 mm²
- Typical current consumption: 155 mA (at US = 24 V DC)
- Degree of protection: IP20
- Operating Temperature: -40 °C ... 75 °C
- Width: 50mm
- Height: 130mm
- Depth: 100mm
- Housing Material: Aluminium
- Mounting Type: DIN Rail
- Weight per Piece (excluding packing): 460 g
- Part Number 2891005
- GTIN: 4046356457200
- Customs tariff number: 85176200
- Country of origin: TW
