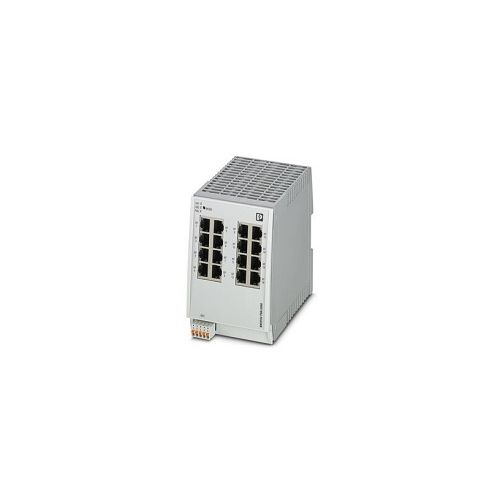

FL SWITCH TSN 2316 | 1232304 | Ethernet Switch
Managed switch, 16 x Twisted Pair (TP) RJ45, 10/100/1000 Mbps, autocrossing function, Housing:- Polycarbonate fibre reinforced, DIN Rail Mounting
| Complete Electronics Part No. | 1232304 |
|---|---|
| Manufacturers Part No. | 1232304 |
| Phoenix Ethernet Series: | Managed Switch TSN 2000 |
| Managed / Unmanaged: | Managed |
| Total 10/100/1000 (RJ45) Ports: | 16 |
| Total Ethernet Ports: | 16 |
| IP Rating: | IP20 |
Description
Managed Industrial Ethernet Switch
16 x Twisted Pair RJ45 Ports
- DIN Rail Mount
- PROFINET device
- Transmission speed: 10/100/1000 Mbps
- Transmission length:100 m (per segment)
- Auto Negotiation and Autocrossing
- Complies with IEEE 802.3, store and forward switching
- Jumbo frames (max. 9,600 bytes)
- Transmission of MMS and GOOSE (IEC 61850-8-1)
- SNTP (Simple Network Time Protocol)
- Signal LEDs: 2 LEDs per Ethernet port (Link/Activity and Speed)
- Supply voltage: 24V DC
- Supply voltage range: 12 V DC ... 57 V DC
- Power supply connection Via COMBICON, max. conductor cross section 1.5 mm²
- Typical current consumption: 740 mA (at US = 24 V DC)
- Degree of protection: IP20
- Operating Temperature: -40 °C ... 60 °C
- Width: 85mm
- Height: 130mm
- Depth: 115mm
- Housing Material: Polycarbonate fibre reinforced
- Mounting Type: DIN Rail
- Weight per Piece (excluding packing): 445 g
- Weight per Piece (including packing): 633.9 g
- Part Number 1232304
