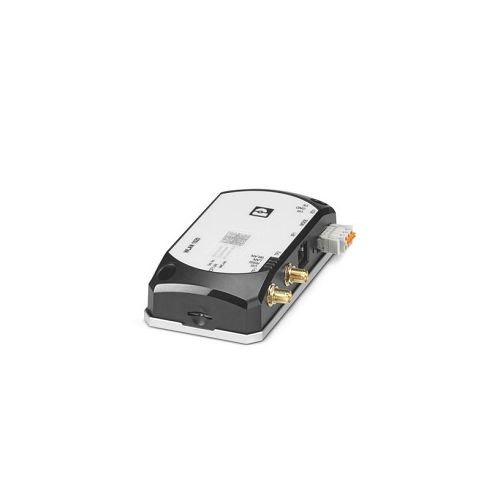

FL WLAN 1020 | 2702992 | Wireless module
WLAN client, soft access point, Wi-Fi 6, with 2 external antenna connections (RSMA-F), IP20, - 30°C ... +60°C, WLAN 802.11a, n, ac, ax
| Complete Electronics Part No. | 2702992 |
|---|---|
| Manufacturers Part No. | 2702992 |
| Ethernet Product Type: | Wireless Module |
Description
FL WLAN 1020
WLAN client, soft access point, Wi-Fi 6
Ethernet (RJ45)
Transmission speed: 10/100/1000 Mbps
RJ45 port x 1
Auto negotiation and autocrossing
Transmission length: 100 m (per segment)
Functions
WLAN access point
WLAN 802.11 a, b, g, n,ac,ax
Frequency: 2.4 GHz, 5 GHz,
Antenna connection method: RSMA (female)
Wireless standard: WLAN, IEEE 802.11, a/b/g/n/ac/ax
Transmission Power: max. 19.5 dBm (with two antennas)
Connection technology: COMBICON
Connection method Push-in spring connection
Recommended conductor cross section: 0.75 mm²
Supply voltage 24 V DC (SELV)
Supply voltage range 9 V DC ... 32 V DC (PELV/SELV)
Supply current typ. 180 mA (at 24 V DC)
Configuration: Web-based management, automated CLI
Ingress protection: IP20
Operating Temperature: -30°C ... 60°C
Mounting: Wall mounting, optional DIN rail adapter
Antennas not included in scope of supply
Approvals
CE Compliant
Dimensions
Width: 63mm
Height: 26mm
Depth: 113mm
Housing Material: Polycarbonate, PC
Material base plate: Die-cast zinc, nickel-plated
Commercial data
Weight (not including packing): 225g
Part Number: 2702992
GTIN: 4055626458205
Customs Tariff Number: 85176200
Minimum Order Quantity: 1pc.
Country Of Origin: Germany
