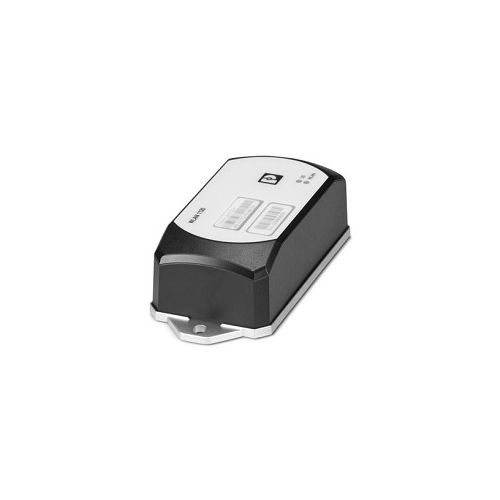

FL WLAN 1120 | 1386091 | Wireless module
WLAN client, soft access point, Wi-Fi 6, with internal antennas (MIMO) for single-hole mounting, IP66/68, -30°C ... +60°C, WLAN 802.11 a, b, g, n, ac, ax
| Complete Electronics Part No. | 1386091 |
|---|---|
| Manufacturers Part No. | 1386091 |
| Ethernet Product Type: | Wireless Module |
Description
FL WLAN 1120
WLAN client, soft access point, Wi-Fi 6
Ethernet (RJ45)
Transmission speed: 10/100/1000 Mbps
RJ45 port x 1
Auto negotiation and autocrossing
Transmission length: 100 m (per segment)
Functions
WLAN access point
WLAN 802.11 a, b, g, n,ac,ax
Frequency: 2.4 GHz, 5 GHz,
Antenna connection method: Internal
Wireless standard: WLAN, IEEE 802.11, a/b/g/n/ac/ax
Connection technology: COMBICON
Connection method Push-in spring connection
Recommended conductor cross section: 0.75 mm²
Supply voltage 24 V DC (SELV)
Supply voltage range 9 V DC ... 32 V DC (PELV/SELV)
Supply current typ. 170 mA (at 24 V DC)
Configuration: Web-based management, automated CLI
Ingress protection: IP65/66/67/68
Operating Temperature: -40°C ... 60°C
Mounting: single hole
Approvals
Dimensions
Width: 62.8mm
Height: 36.5mm
Depth: 113.2mm
Housing Material: Polycarbonate, PC
Material base plate: Die-cast zinc, nickel-plated
Commercial data
Weight (not including packing): 326g
Part Number: 1386091
GTIN: 4063151762308
Customs Tariff Number: 85176200
Minimum Order Quantity: 1pc.
Country Of Origin:
