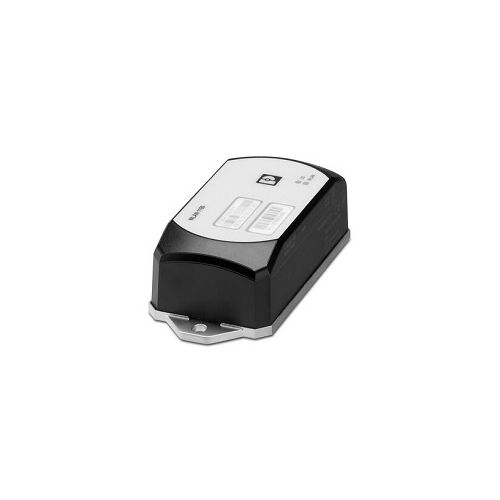

FL WLAN 2100 | 2702535 | Wireless module
WLAN access point, client with two internal antennas (MIMO) for single-hole mounting, IP66/IP68, WLAN 802.11 a, b, g, n
| Complete Electronics Part No. | 2702535 |
|---|---|
| Manufacturers Part No. | 2702535 |
| Ethernet Product Type: | Wireless Module |
Description
Wireless module - FL WLAN 2100
- WLAN 802.11 a, b, g, n
- IEEE 802. 11 a/b/g/n
- Frequency: 2.4 GHz, 5 GHz (incl. DFS channels),
- Power Connection method: COMBICON
- Push in spring connection
- Supply Voltage: 24 V DC (SELV)
- Supply Voltage range: 18 V DC ... 32 V DC (PELV/SELV)
- Supply Current: typ. 120mA (at 24 V DC)
- 1 x RJ45 10/100 Mbps
- Auto negotiation and autocrossing
- 2 x Antenna (Permanently installed)
- Access Point / Client Adapter / Repeater
- Web-based management, automated CLI
- Width: 62.8mm
- Height: 36.5mm
- Depth: 113.2mm
- Housing material: Polycarbonate, PC
- Base plate material: Die-cast zinc, nickel-plated
- Colour: Black
- Ingress protection: IP65,IP66,IP67,IP68
- Operating Temperature: 0°C ... 60°C
- Weight per Piece (excluding packing): 370.2 g
- Part Number 2702535
- Customs tariff number: 85176200
- Country of origin: DE
