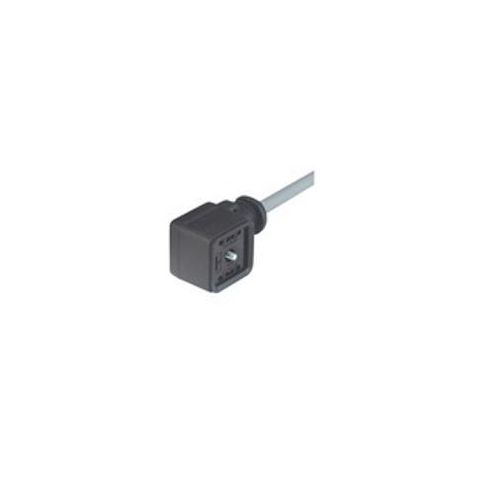

GAN-DADE7A-FS0500C1 -XC607-AC | 934562012 | Cordset
DIN 43650 - 2 Pole + Earth cable socket with integrally moulded lead (5m), gasket (captive) and central screw M3,
| Complete Electronics Part No. | 934 562-012 |
|---|---|
| Manufacturers Part No. | 934562012 |
| Type: | Moulded with lead |
| Voltage: | AC/DC 250V |
| Number of poles | 2+PE |
| Valve Connector Form | A |
| Cable Jacket: | PUR |
| IP Rating: | IP65 / 67 |
Description
GAN-DADE7A-FS0500C1 -XC607-AC
NO LONGER AVAILABLE, REPLACEMENT PART GAN21LU-A0U-6030500- 934 889-074 PLEASE CONTACT THE OFFICE FOR FURTHER INFORMATION 01908 307200
Cable socket with integrally moulded lead
- Gasket (captive) and central screw M3,
- Cable length 5m
- Number of contacts 2 + PE
- Cable material PUR
- Cable color grey
- Cable diameter 5.8 mm
- Conductor size 0.75 mm2
- Cable specification Li9Y11Y-HF 3G x 0.75 mm
- Standard DIN EN 175 301-803-A
- Colour of Housing black
- Construction type A
