GAN-DAFE7A-FS0500C1-XC607-AC | 934562014 | Connector

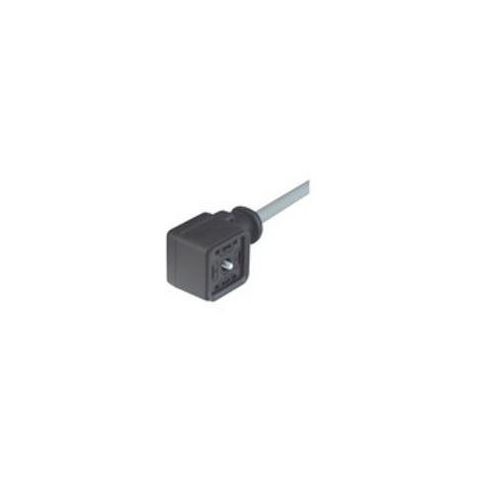

Cable socket with integrally moulded lead, gasket (captive) and central screw M3, Cable length 5m, Number of contacts 2+PE, Cable material PUR
| Complete Electronics Part No. | 934562014 |
|---|---|
| Manufacturers Part No. | GAN-DAFE7A-FS0500C1-XC607-AC |
| Type: | Cordset |
| Cordset Type: | Single Ended |
| Voltage: | AC/DC 250V |
| Number of poles | 2+PE |
| Cable Length: | 5 Metres |
| Valve Connector Form | A |
| Cable Jacket: | PUR |
| IP Rating: | IP65 / 67 |
Description
GAN-DAFE7A-FS0500C1-XC607-AC
NO LONGER AVAILABLE, REPLACEMENT PART GAN22LU-A0U-6030500 - 934 889-084 PLEASE CONTACT THE OFFICE FOR FURTHER INFORMATION 01908 307200
Cable socket with integrally moulded lead, gasket (captive) and central screw M3
- cable length 5m
- Number of contacts 2+PE
- Cable material PUR
- Cable colour Grey
- Cable diameter 5.8mm
- Conductor size 0.75 mm2
- cable specification Li9Y11Y-HF 3G x 0.75 mm
- Standard DIN EN 175 301-803-A
- colour of housing black
- Construction type A
