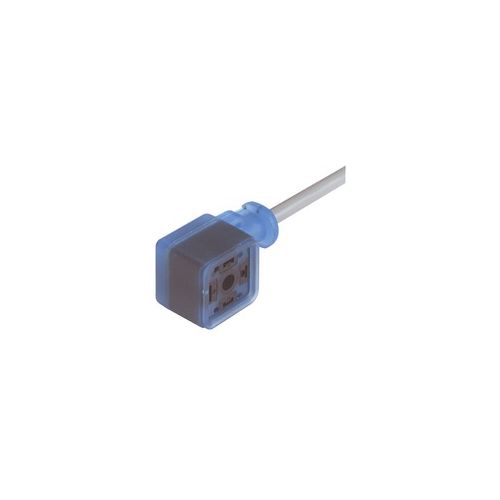

GAN-DBFE7X-AG0500C1-XC607-AC | 934562020 | Connector
Cable socket with integrally moulded lead, function indicator (LED), gasket (captive) and central screw M3, cable length 5m, Number of contacts 2+PE.
| Complete Electronics Part No. | 934562020 |
|---|---|
| Manufacturers Part No. | GAN-DBFE7X-AG0500C1-XC607-AC |
| Type: | Cable Socket |
| Cordset Type: | Single Ended |
| Voltage: | AC/DC 24 V |
| Number of poles | 2+PE |
| Cable Length: | 5 Metres |
| Valve Connector Form | A |
| Led Colour: | Yellow |
| Cable Jacket: | PUR |
| IP Rating: | IP65 / 67 |
Description
GAN-DBFE7X-AG0500C1-XC607-AC
NO LONGER AVAILABLE, REPLACEMENT PART GAN22LU-L14-6090500 - 934 889-090
Cable socket with integrally moulded lead
- cable length 5m
- Number of contacts 2+PE
- Cable material PVC
- Cable colour Grey
- Cable diameter 5.5mm
- Conductor size 0.75 mm2
- cable specification LiYY 3G x 0.75 mm
- Standard DIN EN 175 301-803-A
- colour of housing blue transparent, codinh plate black
- Construction type A
