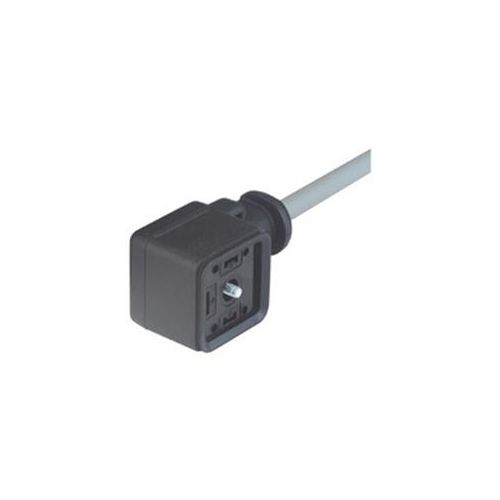

GAN-DHEE7X-AK0200C1-XC607-AD | 934562031 | Connector
Cable socket with integrally moulded lead, gasket (captive) and central screw M3, cable length 5m, Number of contacts 3+PE, Cable material PVC.
| Complete Electronics Part No. | 934562031 |
|---|---|
| Manufacturers Part No. | GAN-DHEE7X-AK0200C1-XC607-AD |
| Type: | Cordset |
| Cordset Type: | Single Ended |
| Voltage: | AC/DC 250V |
| Number of poles | 3+PE |
| Cable Length: | 5 Metres |
| Valve Connector Form | A |
| Cable Jacket: | PVC |
| IP Rating: | IP65 / 67 |
Description
GAN-DHEE7X-AK0200C1-XC607-AD
NO LONGER AVAILABLE, REPLACEMENT PART GAN31LU-P1J-6110200 - 934 889-107
Cable socket with integrally moulded lead. gasket (captive) and central screw M3
- cable length 5m
- Number of contacts 3+PE
- Cable material PVC
- Cable colour Grey
- Cable diameter 6.2mm
- Conductor size 0.75 mm2
- cable specification LiYY 4G x 0.75 mm
- Standard DIN EN 175 301-803-A
- colour of housing black
- Construction type A
Superseded Part No GAN31LU-P1J-6110200 (934889107)
