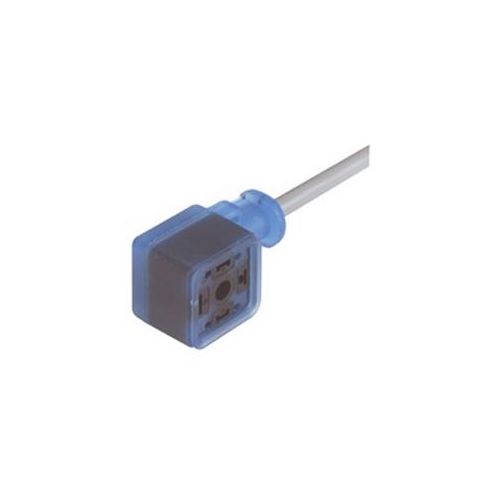

GAN-DRFE7X-FS0200C1-XC607-AD | 934562051 | Connector
Cable socket with moulded lead, protective circuit, function indicator (LED), gasket (captive) and central screw M3, cable length 2m, No of contacts 2+PE.
| Complete Electronics Part No. | 934562051 |
|---|---|
| Manufacturers Part No. | GAN-DRFE7X-FS0200C1-XC607-AD |
| Type: | Cordset |
| Cordset Type: | Single Ended |
| Voltage: | AC/DC 120 V |
| Number of poles | 2+PE |
| Cable Length: | 2 Metres |
| Valve Connector Form | A |
| Led Colour: | Yellow |
| Cable Jacket: | PUR |
| IP Rating: | IP65 / 67 |
Description
GAN-DRFE7X-FS0200C1-XC607-AD
NO LONGER AVAILABLE, REPLACEMENT PART GAN22LU-V21-6030200 - 934 889-117 PLEASE CONTACT THE OFFICE FOR FURTHER INFORMATION 01908 307200
Cable socket with integrally moulded lead, protective circuit (varistor)
- funcion indicator (LED)
- gasket (captive) and central screw M3
- cable length 2m
- Number of contacts 2+PE
- Cable material PUR
- Cable colour Grey
- Cable diameter 5.8mm
- Conductor size 0.75 mm2
- cable specification Li9Y11Y-HF 3G x 0.75 mm
- Standard DIN EN 175 301-803-A
- colour of housing blue transparent, coding plate black
- Construction type A
Superseded Part No GAN22LU-V21-6030200 (934889117)
