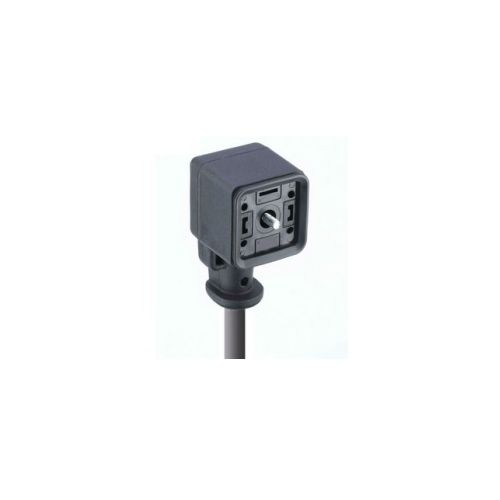

GAN200U-A0U-6060200 | 934889587 | Cordset
Cable socket with integrally moulded lead, gasket (captive), without circuitry, 230V AC/DC, Cable length 2m, Contacts x2, Cable PUR, cULus approval
| Complete Electronics Part No. | 934889587 |
|---|---|
| Manufacturers Part No. | 934889587 |
| Type: | Moulded with lead |
| Voltage: | AC/DC 250V |
| Number of poles | 2 |
| Cable Length: | 2 Metres |
| Cable Jacket: | PUR |
| IP Rating: | IP65 / 67 |
Description
GAN200U-A0U-6060200
Cable socket with integrally moulded lead
- Without circuitry
- Gasket (captive) and central screw M3
- Number of contacts 2
- Cable Length: 2 metres
- Cable jacket material PUR
- Cable colour Grey
- Body Colour: Black
- Cable diameter 5.5 ± 0.20 mm
- Conductor size 0.75 mm²
- Unshielded
- Operating Voltage:230 V AC/DC
- Rated Current: 10 A
- IP Rating: IP65, IP67 (IP69K: with additional gasket; max. +80 °C)
- Construction type: Form A
- Face View - Pin 1 Brown Cable, Pin 2 Blue cable
- Oil Resistance: VDE 0250 und 0472
- UL 2238; cULus
