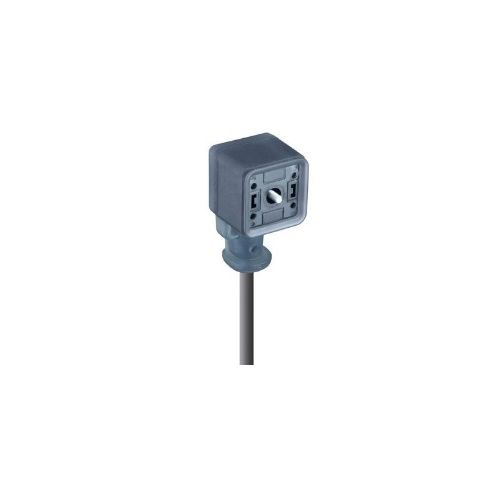

GAN22LU-A0U-6090500-1UC | 934889082 | Cordset

Cable socket with integrally moulded lead, gasket (captive) No Circuitry, 230V AC/DC, Cable length 5m, No. of contacts 2+2PE, Cable PVC
More Information
Complete Electronics Part No. 934889082
Manufacturers Part No. 934889082
Type: Moulded with lead
Voltage: AC/DC 250V
Number of poles 4
Cable Length: 5 Metres
Cable Jacket: PVC
IP Rating: IP65 / 67
Description

GAN22LU-A0U-6090500-1UC

Cable socket with integrally moulded lead

  • No Circuitry
  • Gasket (captive) and central screw M3
  • Translucent body
  • Number of contacts 4 (2+2PE)
  • Cable Length: 5 metres
  • Cable jacket material PVC
  • Cable colour Grey RAL 7001
  • Cable diameter 5.5 ± 0.20 mm
  • Conductor size 0.75 mm2
  • Unshielded
  • Operating Voltage:230 V AC/DC
  • Rated Current: 10 A
  • IP Rating: IP65, IP67 (IP69K: with additional gasket; max. +80 °C)
  • Construction type: Form A
  • Face View - Pin 1 Brown Cable, Pin 2 Blue cable, PE GR/YE
  • Flammability (Cable Jacket): IEC 60332-1-2, DIN VDE 0482-332-1-2 IEC 60332 1-2
  • Oil Resistance: IEC 60811:404
