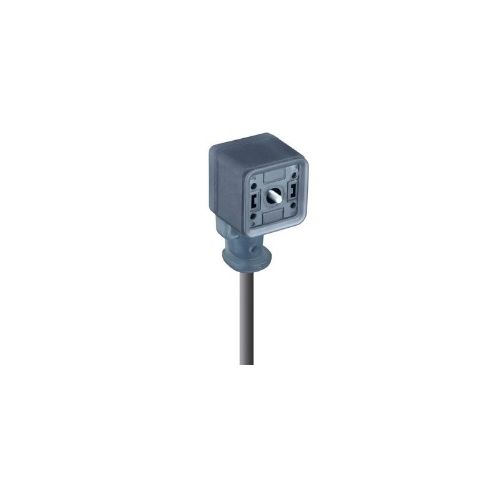

GAN22LU-S24-6091200-1UB | 13488 | Cordset
Cable socket with integrally moulded lead, gasket (captive) with Suppressor Diode & Yellow LED, 24V AC/DC, Cable length 12m, No. of contacts 4, Cable PVC
| Complete Electronics Part No. | 8940 |
|---|---|
| Manufacturers Part No. | 8940 |
| Type: | Moulded with lead |
| Voltage: | AC/DC 24 V |
| Number of poles | 4 |
| Cable Length: | 12 Metres |
| Insert Type: | Suppressor Diode |
| Led Colour: | Yellow |
| Cable Jacket: | PVC |
| IP Rating: | IP65 / 67 |
Description
GAN22LU-S24-6091200-1UB
Cable socket with integrally moulded lead
- Suppressor Diode
- Yellow LED
- Gasket (captive) and central screw M3
- Translucent body
- Number of contacts 4 (2+2PE)
- Cable Length: 12 metres
- Cable jacket material PVC
- Cable colour Grey
- Cable diameter 5.5 ± 0.20 mm
- Conductor size 0.75 mm²
- Unshielded
- Operating Voltage:24 V AC/DC
- Rated Current: 10 A
- IP Rating: IP65, IP67 (IP69K: with additional gasket; max. +80 °C)
- Construction type: Form A
- Face View - Pin 1 Brown Cable, Pin 2 Blue cable, PE GR/YE cable
- Flammability (Jacket): DIN EN 60332-1-2, VDE 0482-332-1-2, IEC 60332-1-2
- Oil resistance: IEC 60811:404
