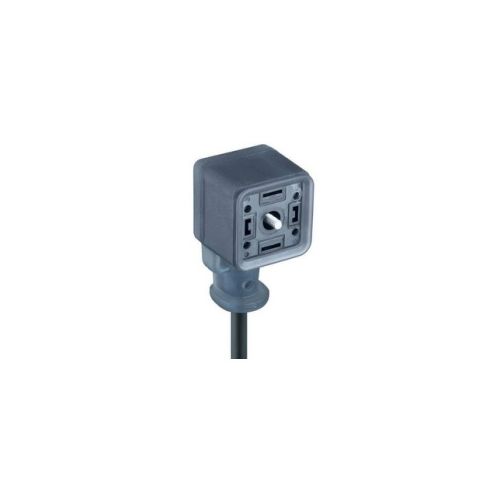

GAN31LU-A0U-7430200-1UC | 934889006 | Cordset
Cable socket with integrally moulded lead, gasket (captive), without circuitry, 230V AC/DC, Cable length 2m, No. of contacts 4, Cable PVC
| Complete Electronics Part No. | 934889006 |
|---|---|
| Manufacturers Part No. | 934889006 |
| Type: | Moulded with lead |
| Voltage: | AC/DC 250V |
| Number of poles | 3+PE |
| Cable Length: | 2 Metres |
| Cable Jacket: | PVC |
| IP Rating: | IP65 / 67 |
Description
GAN31LU-A0U-7430200-1UC
Cable socket with integrally moulded lead
- Without circuitry
- Gasket (captive) and central screw M3
- Translucent body
- Number of contacts 4 (3+1PE)
- Cable Length: 2 metres
- Cable jacket material PVC
- Cable colour Black
- Cable diameter 5.3 ± 0.20 mm
- Conductor size 0.5 mm²
- Unshielded
- Operating Voltage:230 V AC/DC
- Rated Current: 6 A
- IP Rating: IP65, IP67 (IP69K: with additional gasket; max. +80 °C)
- Construction type: Form A
- Face View - Pin 1 Brown Cable, Pin 2 Blue cable, Pin 3:Black Cable, PE GR/YE cable
- UL Cable Type: AWM 2464
