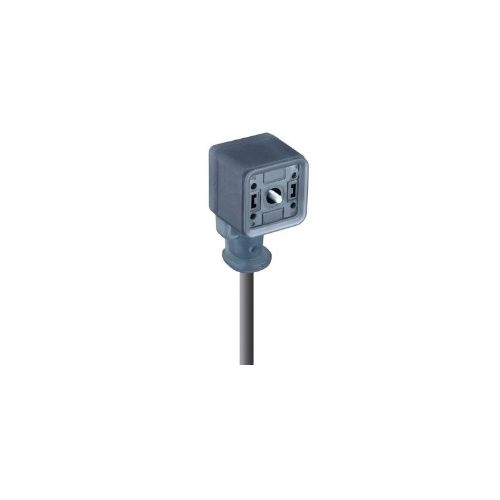

GAN31LU-P1M-6110200-1UC | 934889109 | Cordset
Cable socket with integrally moulded lead, gasket (captive), with Yellow / Green LEDS, 24V AC/DC, Cable length 2m, No. of contacts 4, Cable PVC
| Complete Electronics Part No. | 934889109 |
|---|---|
| Manufacturers Part No. | 934889109 |
| Type: | Moulded with lead |
| Voltage: | AC/DC 24 V |
| Number of poles | 3+PE |
| Cable Length: | 2 Metres |
| Insert Type: | LED Only |
| Led Colour: | Yellow / Green |
| Cable Jacket: | PVC |
| IP Rating: | IP65 / 67 |
Description
GAN31LU-P1M-6110200-1UC
Cable socket with integrally moulded lead
- With yellow-green LEDs for pressure switch
- Gasket (captive) and central screw M3
- Translucent body
- Number of contacts 4 (3+1PE)
- PE across cable outlet
- Cable Length: 2 metres
- Cable jacket material PVC
- Cable colour Grey
- Cable diameter 6.8 ± 0.20 mm
- Conductor size 0.75 mm²
- Unshielded
- Operating Voltage:24 V AC/DC
- Rated Current: 10 A
- IP Rating: IP65, IP67 (IP69K: with additional gasket; max. +80 °C)
- Construction type: Form A
- Face View - Pin 1 Brown Cable, Pin 2 Blue cable, Pin 3:Black Cable, Pin 4: Grey Cable, PE GR/YE cable
- Flammability Class (Cable Jacket): IEC 60332-1, DIN VDE 0472 part 904 test method B
- Oil Resistance: extensively oil and petrol resistant according to VDE 0250 und 0472
