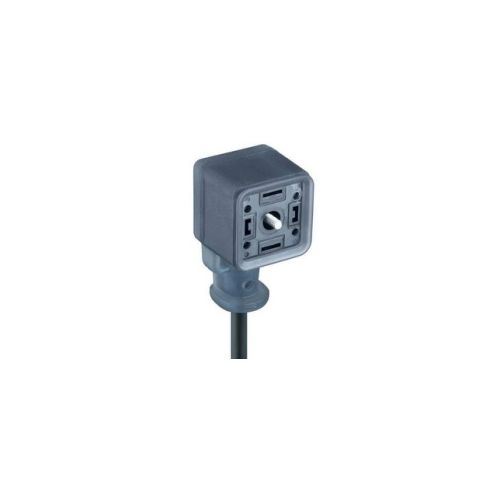

GAN3ZLU-P2M-2281000-1UB | 934889066 | Cordset
Cable socket with integrally moulded lead, gasket (captive), with Red / Green LEDS, 24V AC/DC, Cable length 10m, No. of contacts 4, Cable PUR
| Complete Electronics Part No. | 934889066 |
|---|---|
| Manufacturers Part No. | 934889066 |
| Type: | Moulded with lead |
| Voltage: | AC/DC 24 V |
| Number of poles | 3+PE |
| Cable Length: | 10 Metres |
| Insert Type: | LED Only |
| Led Colour: | Red / Green |
| Cable Jacket: | PUR |
| IP Rating: | IP65 / 67 |
Description
GAN3ZLU-P2M-2281000-1UB
Cable socket with integrally moulded lead
- With Red - Green LEDs for pressure switch
- Gasket (captive) and central screw M3
- Translucent body
- Number of contacts 4 (3+1PE)
- PE across cable outlet
- Cable Length: 10 metres
- Cable jacket material PUR
- Cable colour Black
- Cable diameter 5.4 ± 0.20 mm
- Conductor size 0.5 mm²
- Unshielded
- Operating Voltage:24 V AC/DC
- Rated Current: 6 A
- IP Rating: IP65, IP67 (IP69K: with additional gasket; max. +80 °C)
- Construction type: Form A
- Face View - Pin 1 Brown Cable, Pin 2 White cable, Pin 3:Black Cable, Pin 4: Blue Cable, PE GR/YE cable
- Flammability Class (Cable Jacket): DIN EN 60332-2-2, VDE 0482-332-2-2, IEC 60332-2-2, CSA FT-2
- Oil Resistance: IEC 60811:404
- Halogen Free
