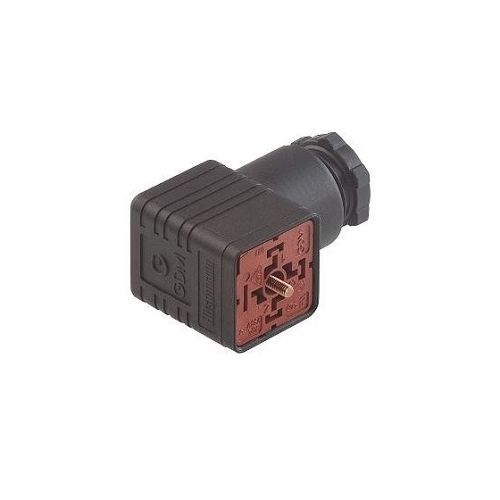

GDM 3014 J | 932110100 | Valve Connector 3+PE
DIN 43650 - 3 pole + Earth cable socket with central screw, UL Approved, Form A
| Complete Electronics Part No. | 932110100 |
|---|---|
| Manufacturers Part No. | 932 110-100 |
| Type: | Cable Socket |
| Voltage: | AC/DC 250V |
| Number of poles | 3+PE |
| Cable Gland Size: | ISO 228 - G1/2(R1/2") |
| Valve Connector Form | A |
| Termination: | Screw / Cable Shoe / Cable eye |
| IP Rating: | IP65 |
Description
GDM 3014 J
Valve Connector 3 pole + Earth
- Gland size ISO 228 - G1/2(R1/2")
- Form A
- UL approved Cable socket with central screw
- Suitable cables: 6mm to 9mm dia
- Rated current: 16 A
- Rated voltage: AC/DC 250 V
***Replaced By: 934888158, GDM31AR-A0U-10F***
