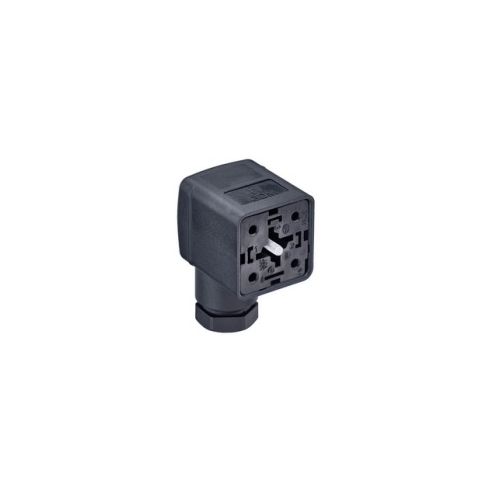

GDM2106-A0U-1BF | 934888134 | Valve Connector 2+PE
GDM Standard DIN Standard Field Attachable Connector: Form A, 3-pin (2+1PE; PE across cable outlet), with EPDM gasket, 230 V AC/DC
| Complete Electronics Part No. | 934888134 |
|---|---|
| Manufacturers Part No. | 934888134 |
| Type: | Cable Socket |
| Voltage: | AC/DC 250V |
| Number of poles | 3 |
| Cable Gland Size: | M16 |
| Valve Connector Form | A |
| Termination: | Screw |
| IP Rating: | IP65 |
Description
GDM2106-A0U-1BF
2+1PE; PE across cable outlet
- Form A
- 2 +PE (3pin)
- Black Housing
- Screw Type
- Cable Gland: M16
- Without Circuitry
- Operating Voltage: 230 V AC/DC
- Rated Current16 A
- Field Attachable
- Gender: Female
- Unshielded
- Gasket Material: EPDM Flat
- Central Screw
- Screw Connection
- Contact Plating: Cu/Sn
- Housing material: PA GF
- Operating Temperature: -40°C - +125°C
- IP Rating: IP65
