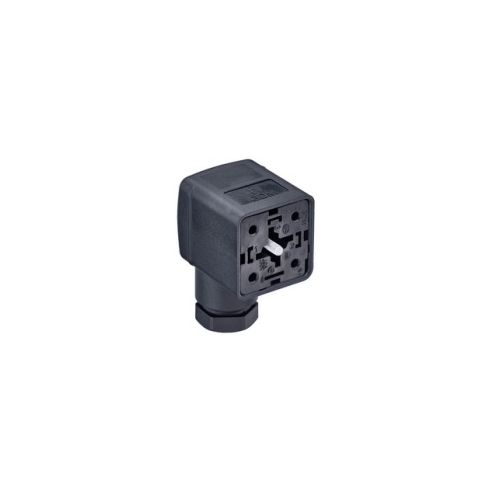

GDM210B-V3U-10D | 934888136 | Valve Connector 2+PE
GDM Standard DIN Standard Field Attachable Connector: Form A, 3-pin (2+1PE; PE across cable outlet) with Bridge Rectifier & Varistor, 230 v AC/DC, 1A
| Complete Electronics Part No. | 934888136 |
|---|---|
| Manufacturers Part No. | 934888136 |
| Type: | Cable Socket |
| Voltage: | AC/DC 250V |
| Number of poles | 3 |
| Cable Gland Size: | PG11 |
| Valve Connector Form | A |
| Termination: | Screw |
| Insert Type: | Bridge Rectifier + Varistor |
| IP Rating: | IP65 |
Description
GDM210B-V3U-10D
With Bridge Rectifier & Varistor
- Form A
- 2 +PE (3pin)
- With Bridge Rectifier & Varistor
- Black Housing
- Screw Type
- Cable Gland: PG11
- Operating Voltage: 230 V AC/DC
- Rated Current 1A
- Field Attachable
- Gender: Female
- Unshielded
- Central Screw
- Screw Connection
- Gasket Sold Seperately
- Contact Plating: Cu/Sn
- Housing material: PA GF
- Operating Temperature: -40°C - +125°C
- IP Rating: IP65
***Replacement for: 932329106 - GDML 2011 GB 1 grau ( Black Housing instead of Grey )***
