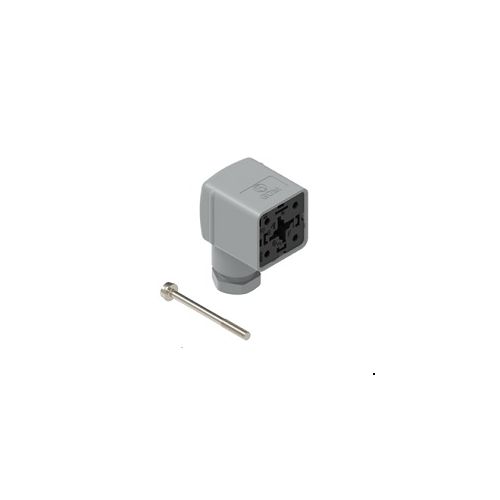

GDM2166-A0U-10F | 934888131 | Valve Connector 2+PE

GDM Standard DIN Field Attachable Connector: Form A, 3-pin (2+1PE; PE across cable outlet), Gasket sold seperately, 230 V AC/DC, 16A
More Information
Complete Electronics Part No. 934888131
Manufacturers Part No. 934888131
Type: Cable Socket
Voltage: AC/DC 250V
Number of poles 2+PE
Cable Gland Size: M16
Valve Connector Form A
Termination: Screw
IP Rating: IP65
Description

GDM2166-A0U-10F

2+1PE; PE across cable outlet

Form A
2 +PE (3pin)
Grey Housing
Screw Type
Cable Gland: M16
Without Circuitry
Operating Voltage: 230 V AC/DC
Rated Current 16 A
Field Attachable
Gender: Female
Unshielded
Gasket Material: Sold seperately
Central Screw
Screw Connection
Contact Plating: Cu/Sn
Housing material: PA GF
Operating Temperature: -40°C - +125°C
IP Rating: IP65
