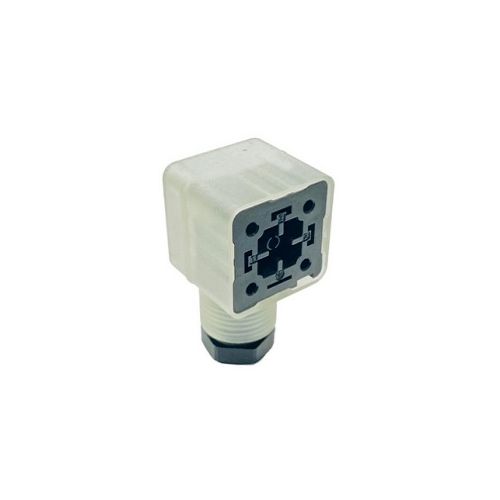

GDM21F6-L11-10D | 934888019 | Valve Connector 2+PE
GDM Standard DIN Field Attachable Connector: Form A, 3-pin (2+1PE), With Yellow LED, 110 V AC/DC, 10A, M16 Cable Gland, IP65
| Complete Electronics Part No. | 934888019 |
|---|---|
| Manufacturers Part No. | 934888019 |
| Type: | Cable Socket |
| Voltage: | AC/DC 120 V |
| Number of poles | 3 |
| Cable Gland Size: | M16 |
| Valve Connector Form | A |
| Termination: | Screw |
| Insert Type: | LED Only |
| Led Colour: | Yellow |
| IP Rating: | IP65 |
Description
GDM21F6-L11-10D
110 V AC/DC Yellow LED
- Form A
- 2 +PE (3pin)
- Translucent Housing
- Yellow LED
- Cable Gland: M16
- Suitable Cable: Ø 4.5 - 10 mm
- Operating Voltage: 110 V AC/DC
- Rated Current 10A
- Field Attachable
- Gender: Female
- Unshielded
- Central Screw
- Screw Connection
- Gasket: Sold Seperately
- Contact Plating: Cu/Sn
- Housing material: PA GF
- Operating Temperature: -25°C - +80°C
- IP Rating: IP65
