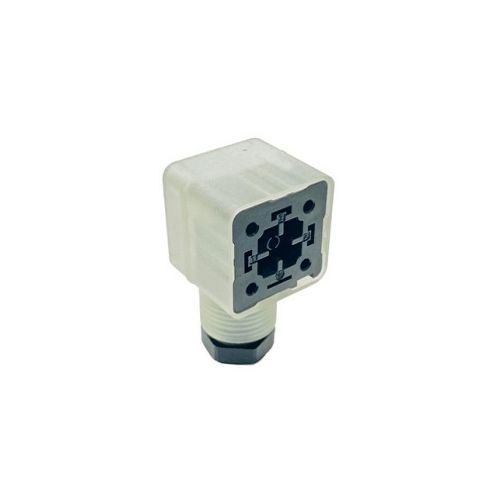

GDM21F6-L1Y-10D | 934888020 | Valve Connector 2+PE
GDM Standard DIN Field Attachable Connector: Form A, 3-pin (2+1PE), With Yellow LED, 230 V AC/DC, 10A, M16 Cable Gland, IP65
| Complete Electronics Part No. | 934888020 |
|---|---|
| Manufacturers Part No. | 934888020 |
| Type: | Cable Socket |
| Voltage: | AC/DC 250V |
| Number of poles | 3 |
| Cable Gland Size: | M16 |
| Valve Connector Form | A |
| Termination: | Screw |
| Insert Type: | LED Only |
| Led Colour: | Yellow |
| IP Rating: | IP65 |
Description
GDM21F6-L1Y-10D
230 V AC/DC Yellow LED
- Form A
- 2 +PE (3pin)
- Translucent Housing
- Yellow LED
- Cable Gland: M16
- Suitable Cable: Ø 4.5 - 10 mm
- Operating Voltage: 230 V AC/DC
- Rated Current 10A
- Field Attachable
- Gender: Female
- Unshielded
- Central Screw
- Screw Connection
- Gasket: Sold Seperately
- Contact Plating: Cu/Sn
- Housing material: PA GF
- Operating Temperature: -25°C - +80°C
- IP Rating: IP65
***Replacement for: 934425003, GDML 2016 LED 230 YE grau***
