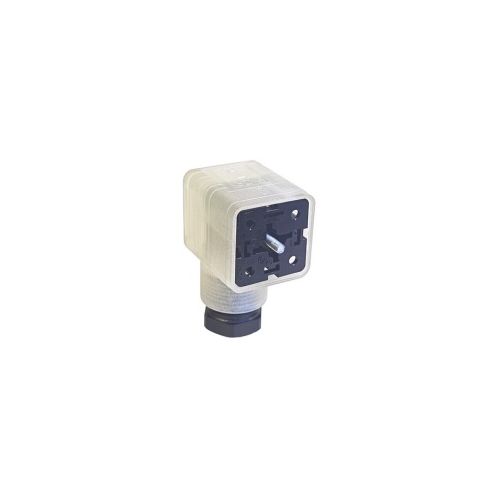

GDM21F6-V2C-10D | 5935 | Valve Connector
DIN 43650 - 2 pole + Earth, Function indicator (Red LED) and protective circuit (varistor), M16, Form A
| Complete Electronics Part No. | 5935 |
|---|---|
| Manufacturers Part No. | 5935 |
| Type: | Cable Socket with Electronic Insert |
| Voltage: | AC/DC 24 V |
| Number of poles | 2+PE |
| Cable Gland Size: | M16 |
| Valve Connector Form | A |
| Termination: | Screw |
| Insert Type: | Diode + Varistor |
| Led Colour: | Red |
| IP Rating: | IP65 |
Description
GDM21F6-V2C-10D
Valve Connector
- Number of contacts 2 + PE
- Cable gland M 16 (black)
- Rated Voltage: 24V DC
- Rated Current: 10A
- Conductor size max. 1.5 mm²
- Standard DIN EN 175 301-803-A
- Housing Color transparent
- Construction type A
- Function indicator (LED) and protective circuit (varistor)
