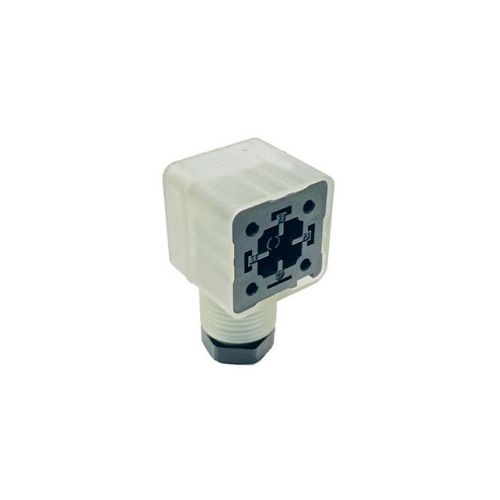

GDM21FB-L1Y-10D | 934888142 | Valve Connector 2+PE
GDM Standard DIN Field Attachable Connector: Form A, 3-pin (2+1PE), With Yellow LED, 230 V AC/DC, 10A, PG11 Cable Gland, IP65
| Complete Electronics Part No. | 934888142 |
|---|---|
| Manufacturers Part No. | 934888142 |
| Type: | Cable Socket |
| Voltage: | AC/DC 250V |
| Number of poles | 3 |
| Cable Gland Size: | PG11 |
| Valve Connector Form | A |
| Termination: | Screw |
| Insert Type: | LED Only |
| Led Colour: | Yellow |
| IP Rating: | IP65 |
Description
GDM21FB-L1Y-10D
230 V AC/DC 10 Amp
Form A
2 +PE (3pin)
Translucent Housing
Yellow LED
Cable Gland: PG11
Suitable Cable: Ø 4.5 - 11 mm
Operating Voltage: 230 V AC/DC
Rated Current 10A
Field Attachable
Gender: Female
Unshielded
Central Screw
Screw Connection
Gasket: Sold Separately
Contact Plating: Cu/Sn
Housing material: PA GF
Operating Temperature: -25°C - +80°C
IP Rating: IP65
