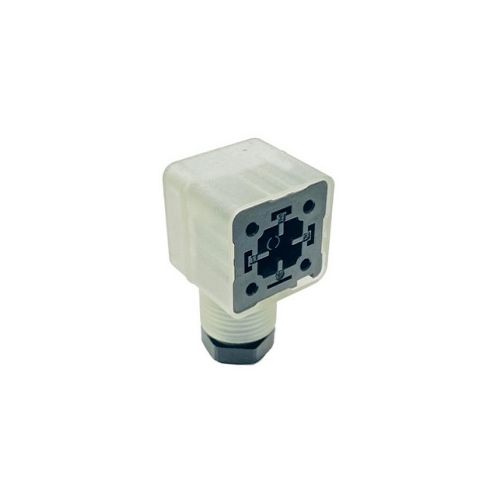

GDM21FD-L14 | Valve Connector 2+PE
GDM Standard DIN Field Attachable Connector: Form A, 3-pin (2+1PE), Yellow LED, 24 V AC/DC, 10A, 1/2" NPTF Cable Gland, IP65
| Complete Electronics Part No. | GDM21FDL14 |
|---|---|
| Manufacturers Part No. | GDM21FD-L14 |
| Type: | Cable Socket |
| Voltage: | AC/DC 24 V |
| Number of poles | 3 |
| Cable Gland Size: | 1/2" NPTF |
| Valve Connector Form | A |
| Termination: | Screw |
| Insert Type: | LED Only |
| Led Colour: | Yellow |
| IP Rating: | IP65 |
Description
GDM21FD-L14
24 V AC/DC 10 Amp
- Form A
- 2 +PE (3pin)
- Translucent Housing
- Yellow LED
- Cable Gland: 1/2" NPTF
- Suitable Cable: Ø 8 - 13.5 mm
- Operating Voltage: 24 V AC/DC
- Rated Current 10A
- Field Attachable
- Gender: Female
- Unshielded
- Central Screw
- Screw Connection
- Gasket: Sold Separately
- Contact Plating: Cu/Sn
- Housing material: PA GF
- Operating Temperature: -25°C - +80°C
- IP Rating: IP65
