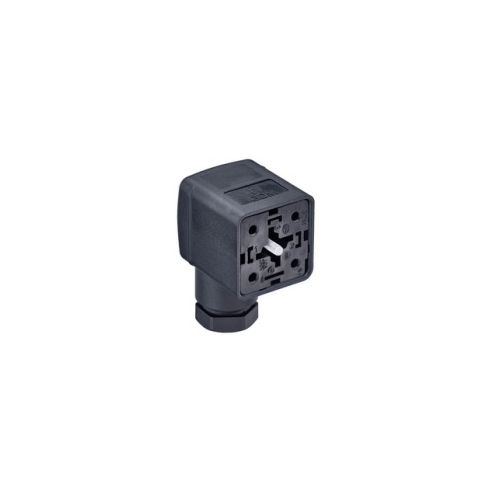

GDM3109-A0U-1ED | 17393 | Valve Connector 3+PE
GDM Standard DIN Field Attachable Connector: Form A, 4-pin 3+1PE, Gasket: NBR Profile, 230 V AC/DC, 16A, PG9, IP65
| Complete Electronics Part No. | 17393 |
|---|---|
| Manufacturers Part No. | 17393 |
| Type: | Cable Socket |
| Voltage: | AC/DC 250V |
| Number of poles | 4 |
| Cable Gland Size: | PG 9 |
| Valve Connector Form | A |
| Termination: | Screw |
| IP Rating: | IP65 |
Description
GDM3109-A0U-1ED
3+1PE; PE across cable outlet
- Form A
- 3 +PE (4pin)
- Black Housing
- Screw Type
- Cable Gland: PG9
- Operating Voltage: 230 V AC/DC
- Rated Current 16 A
- Field Attachable
- Gender: Female
- Unshielded
- Gasket: NBR Profile
- Suitable Cable: Ø 4.5 - 10 mm
- Central Screw
- Screw Connection
- Contact Plating: Cu/Sn
- Housing material: PA GF
- Operating Temperature: -40°C - +125°C
- IP Rating: IP65
