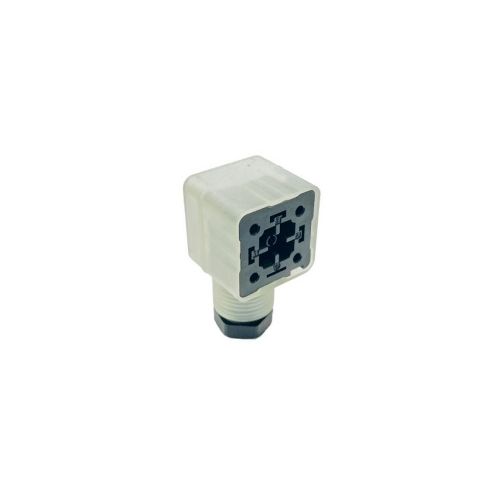

GDM31FJ-A0U-10D | 18884 | Valve Connector 3+PE
GDM Standard DIN Field Attachable Connector: Form A, 4-pin 3+1PE, Gasket: Sold Separately, 230 V AC/DC,16A, M16, IP65
| Complete Electronics Part No. | 18884 |
|---|---|
| Manufacturers Part No. | 18884 |
| Type: | Cable Socket |
| Voltage: | AC/DC 250V |
| Number of poles | 4 |
| Cable Gland Size: | M16 |
| Valve Connector Form | A |
| Termination: | Screw |
| IP Rating: | IP65 |
Description
GDM31FJ-A0U-10F
3+1PE; PE across cable outlet
- Form A
- 3 +PE (4pin)
- Transparent Housing
- Cable Gland: M16
- Operating Voltage: 230 V AC/DC
- Rated Current 16 A
- Field Attachable
- Gender: Female
- Gasket: Sold Separately
- Suitable Cable: Ø 6 - 8 mm
- Conductor Cross Section: 0.25 - 1.5 mm²
- Central Screw
- Screw Connection
- Flammability Class: UL 94 HB
- Contact Plating: Cu/Sn
- Housing material: PA GF
- Operating Temperature: -25°C - +80°C
- IP Rating: IP65
