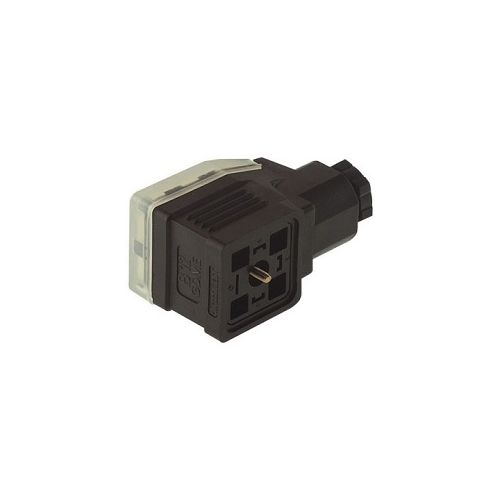

GDME 2011 TIMER | 933719100 | Connector
DIN 43650 - 3 Pole + Earth,Cable socket with times may be set independently of one another by means of potentiometer, 8 diff. switching progr. with function indicator (LED) and integral protective wiring and gasket, PG11, Form A
| Complete Electronics Part No. | 933719100 |
|---|---|
| Manufacturers Part No. | 933-719-100 |
| Type: | Cable Socket with Electronic Insert |
| Voltage: | AC 48 V / DC 24 V |
| Number of poles | 3+PE |
| Cable Gland Size: | PG11 |
| Valve Connector Form | A |
| Termination: | Screw |
| Insert Type: | Timer + Function Indicator |
| IP Rating: | IP65 |
Description
GDME 2011 TIMER
Valve Connector 3 Pole + Earth
- Cable gland: PG 11
- Form A
- Cable socket with times may be set independently of one another by means of potentiometer
- 8 different switching programs
- With function indicator (LED)
- And integral protective wiring and gasket
- Rated voltage AC 48 V / DC 24 V
- Rated current 2 A
- Suitable cables: 4.5 mm to 11 mm diam
