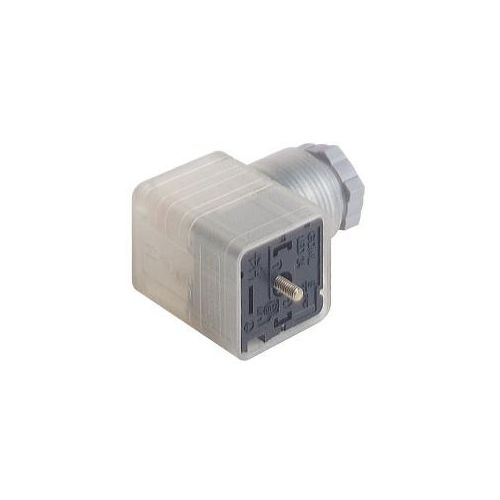

GDML 2016 GB1 LED 48 Grey | 934422003 | Connector
DIN 43650 - 2 Pole + Earth, Bridge-type rectifier with protective circuit (varistor) and function indicator (Red LED), M16, Form A
| Complete Electronics Part No. | 934 422-003 |
|---|---|
| Manufacturers Part No. | 934422003 |
| Type: | Cable Socket with Electronic Insert |
| Voltage: | DC 48 V |
| Number of poles | 2+PE |
| Cable Gland Size: | M16 |
| Valve Connector Form | A |
| Termination: | Screw |
| Insert Type: | Bridge Rectifier + Varistor |
| Led Colour: | Red |
| IP Rating: | IP65 |
Description
GDML 2016 GB1 LED 48 grau/grey
Valve Connector
- Number of contacts 2 + PE
- Cable gland M 16 (grey)
- Conductor size max. 0.75 mm²
- Standard DIN EN 175 301-803-A
- Housing Color transparent
- Construction type A
- Bridge-type rectifier with protective circuit (varistor) and function indicator (LED)
